NTTFSSH1D3N04XL - onsemi

Description: Ultra Low Rds(on) to Improve System Efficiency; Low Qg and Capacitance to Minimize Driving and Switching Losses; Excellent Thermal Conduction by Advanced Source−Down Center Gate Package Technology (3.3x3.3mm); Board level reliability (BLRT testing): 1000cycle with -40℃ to 125℃, 10min. dwell, 20℃/min, 6layers 2.35T; These Devices are Pb−Free, Halogen−Free/BFR−Free and are RoHS Compliant

Download NTTFSSH1D3N04XL Model

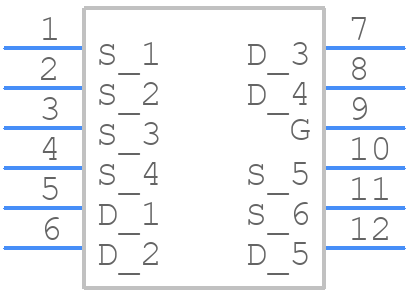

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NTTFSSH1D3N04XL - onsemi PCB footprint - Other - Other - WDFN9 3.3x3.3, 0.65P CASE 511EB ISSUE B
click to zoom
3D Models
NTTFSSH1D3N04XL - onsemi  - 3D model - Other - WDFN9 3.3x3.3, 0.65P CASE 511EB ISSUE B
click to zoom

NTTFSSH1D3N04XL Details

  • Manufacturer Part Number:

    NTTFSSH1D3N04XL

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN9 3.3x3.3, 0.65P

  • Manufacturer Package Code:

    511EB

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    135 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    207 A

  • Drain-source On Resistance-Max:

    0.0014 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    32 pF

  • JESD-30 Code:

    S-PTSO-N9

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    9

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    107 W

  • Pulsed Drain Current-Max (IDM):

    812 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    TRIPLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
