NUD3112DMT1G - onsemi

Description: Provides a Robust Driver Interface Between D.C. Relay Coil and Sensitive Logic Circuits; Optimized to Switch Relays of 12 V Rail; Capable of Driving Relay Coils Rated up to 6.0 W at 12 V; Internal Zener Eliminates the Need of Free-Wheeling Diode; Internal Zener Clamp Routes Induced Current to Ground for Quieter Systems Operation; Low VDS(ON) Reduces System Current Drain

Download NUD3112DMT1G Model

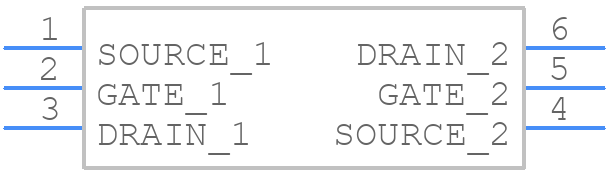

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NUD3112DMT1G - onsemi PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SC-74 CASE 318F-05 ISSUE K
click to zoom
3D Models
NUD3112DMT1G - onsemi  - 3D model - SOT23 (6-Pin) - SC-74 CASE 318F-05 ISSUE K
click to zoom

NUD3112DMT1G Details

  • Manufacturer Part Number:

    NUD3112DMT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SC-74 (SC-59ML) 6 LEAD

  • Package Description:

    SC-74, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    318F-05

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    1

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.091 µs

  • Turn-on Time:

    0.021 µs

  • Width:

    1.5 mm

NUD3112DMT1G Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the thermal pad to connect to an internal copper plane or a heat sink.
  • The NUD3112DMT1G requires a bias voltage of 5V to 15V. Ensure the input voltage is within this range and the output voltage is properly regulated. A decoupling capacitor of 10uF or larger is recommended to filter out noise and ensure stable operation.
  • The maximum junction temperature (Tj) for the NUD3112DMT1G is 150°C. Ensure the device is operated within the recommended temperature range to prevent thermal damage.
  • Handle the device by the body or use an ESD wrist strap to prevent static buildup. Ensure the PCB is designed with ESD protection in mind, such as using ESD diodes or resistors to dissipate static charges.
  • Store the device in a dry, cool place away from direct sunlight. Avoid bending or flexing the leads, and handle the device by the body or use an ESD wrist strap to prevent static buildup.
