NUD4001DR2G - onsemi

Description: Supplies Constant LED Current for varying Input Voltages.; External Resistor Allows Designer to set Current - up to 500 mA.; AEC-Q101 Qualified and PPAP Capable; NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements

Download NUD4001DR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

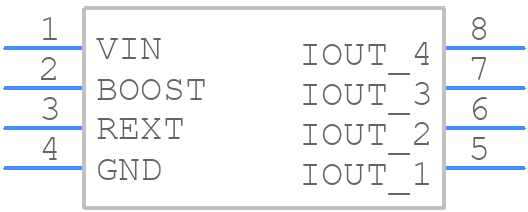

NUD4001DR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NUD4001DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom
3D Models
NUD4001DR2G - onsemi - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom

NUD4001DR2G Details

  • Manufacturer Part Number:

    NUD4001DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.89

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NUD4001DR2G Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. Multiple vias can be used to connect the thermal pad to an inner layer or the backside of the PCB for better heat dissipation.
  • Ensure that the device is operated within the recommended temperature range (up to 150°C). Use a heat sink or thermal interface material to reduce the junction temperature. Also, consider derating the device's current handling capability at high temperatures.
  • The device has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the PCB is properly grounded.
  • Yes, the NUD4001DR2G is AEC-Q101 qualified, making it suitable for automotive applications. However, it's essential to follow the recommended operating conditions, and ensure that the device is properly validated for the specific application.
  • Use a logic analyzer or oscilloscope to monitor the device's input and output signals. Check for proper power supply voltage, and ensure that the device is operated within the recommended temperature range. Consult the datasheet and application notes for troubleshooting guidelines.
