Part Image

NUF6401MNT1G - onsemi

Description: IEC61000−4−2 (ESD): Level 4; SZNUF6401MNWT1G Wettable Flank Package; Low ESD Clamping Voltage; These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant; Integrated EMI Filtering & ESD Protection; S and SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable

Download NUF6401MNT1G Model

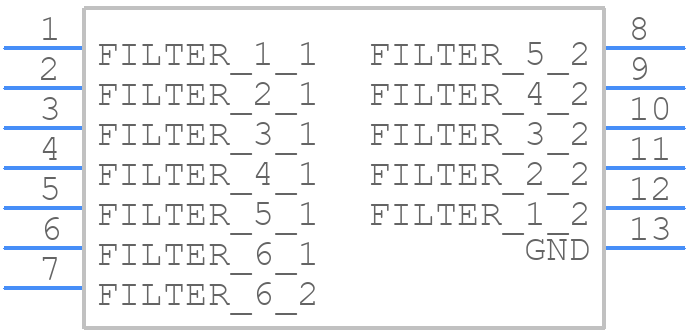

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NUF6401MNT1G - onsemi PCB footprint - Other - Other - SNUF6401MNT1G-1
click to zoom
3D Models
NUF6401MNT1G - onsemi  - 3D model - Other - SNUF6401MNT1G-1
click to zoom

NUF6401MNT1G Details

  • Manufacturer Part Number:

    NUF6401MNT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN12 3.0x1.35, 0.5P

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    506AD

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    PI TYPE CIRCUIT

  • Approvals:

    IEC

  • Capacitance:

    34 µF

  • DC Resistance-Max:

    115 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    1 mm

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    6

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Packing Method:

    TAPE AND REEL

  • Rated Voltage:

    5 V

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Width:

    1.35 mm

NUF6401MNT1G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material to improve heat transfer.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. Operating the device above this voltage can cause permanent damage.
  • Yes, the NUF6401MNT1G is suitable for high-frequency switching applications up to 100 kHz. However, ensure proper PCB layout and decoupling to minimize electromagnetic interference (EMI).
  • Use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins to protect the device from electrostatic discharge. Follow proper PCB design and layout guidelines to minimize ESD risks.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NUF6401MNT1G Overview

Use the download button to access the NUF6401MNT1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NUF64, or try a keyword search, such as Data Line Filters
