Description:1.7 V to 5.5 V Supply Voltage Range; 16−Byte Page Write Buffer; Fast Write Time (4 ms max); Hardware Write Protection for Entire Memory; Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA); Low Power CMOS Technology; 1,000,000 Program/Erase Cycles; 100 Year Data Retention; Automotive Grade 1 Temperature Range; US- 8, UDFN-8,SOIC-8 and TSSOP-8 Packages; This Device is Pb−Free, Halogen Free/BFR Free, and RoHS Compliant
A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device and to avoid routing high-current traces under the device.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, use a suitable thermal interface material, and consider derating the device's operating conditions. Additionally, ensure that the device is operated within its specified temperature range and that the junction temperature (Tj) does not exceed 150°C.
The recommended soldering conditions for the NV24C04DWVLT3G are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering temperature profile that follows the JEDEC J-STD-020 standard.
To handle ESD protection during handling and assembly, it's recommended to follow proper ESD handling procedures, use ESD-protective packaging and materials, and ensure that all personnel handling the device are grounded. Additionally, consider using ESD protection devices or circuits in the system design.
The NV24C04DWVLT3G has an MSL rating of 3, which means it can be exposed to a maximum of 168 hours of moisture before soldering. This requires proper storage and handling procedures to prevent moisture absorption, and baking the device before soldering if it has been exposed to moisture for an extended period.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NV24C04DWVLT3G Overview

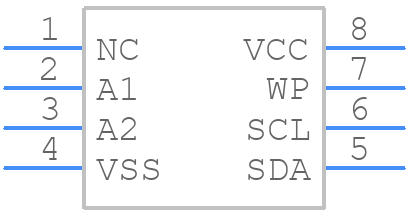

Use the download button to access the NV24C04DWVLT3G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NV24C,
or try a keyword search, such as EEPROMs
