NV24C04MUW3VLTBG - onsemi

Description: 1.7 V to 5.5 V Supply Voltage Range; 16−Byte Page Write Buffer; Fast Write Time (4 ms max); Hardware Write Protection for Entire Memory; Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA); Low Power CMOS Technology; 1,000,000 Program/Erase Cycles; 100 Year Data Retention; Automotive Grade 1 Temperature Range; US- 8, UDFN-8,SOIC-8 and TSSOP-8 Packages; This Device is Pb−Free, Halogen Free/BFR Free, and RoHS Compliant

Download NV24C04MUW3VLTBG Model

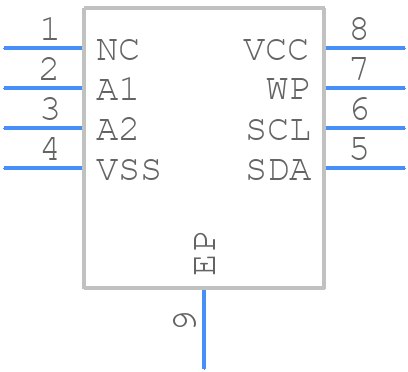

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NV24C04MUW3VLTBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - NV24C04MUW3VLTBG
click to zoom
3D Models
NV24C04MUW3VLTBG - onsemi  - 3D model - Small Outline No-lead - NV24C04MUW3VLTBG
click to zoom

NV24C04MUW3VLTBG Details

  • Manufacturer Part Number:

    NV24C04MUW3VLTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN-8

  • Manufacturer Package Code:

    517DH

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Clock Frequency-Max (fCLK):

    1 MHz

  • Data Retention Time-Min:

    100

  • Endurance:

    1000000 Write/Erase Cycles

  • I2C Control Byte:

    1010DDMR

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Memory Density:

    4096 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    8

  • Number of Words:

    512 words

  • Number of Words Code:

    512

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512X8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.55 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.000002 A

  • Supply Current-Max:

    0.0005 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

  • Write Cycle Time-Max (tWC):

    4 ms

  • Write Protection:

    HARDWARE
