NV24C64MUW3VLTBG - onsemi

Description: 1.7 V to 5.5 V Supply Voltage Range; 32−Byte Page Write Buffer; Fast Write Time (4 ms max); Hardware Write Protection for Entire Memory; Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA); Low Power CMOS Technology; 1,000,000 Program/Erase Cycles; 100 Year Data Retention; Automotive Grade 1 Temperature Range; US- 8, UDFN-8,SOIC-8 and TSSOP-8 Packages; This Device is Pb−Free, Halogen Free/BFR Free, and RoHS Compliant

Download NV24C64MUW3VLTBG Model

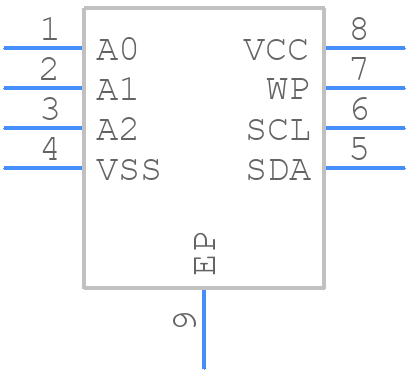

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NV24C64MUW3VLTBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - CASE 517DH
click to zoom
3D Models
NV24C64MUW3VLTBG - onsemi  - 3D model - Small Outline No-lead - CASE 517DH
click to zoom

NV24C64MUW3VLTBG Details

  • Manufacturer Part Number:

    NV24C64MUW3VLTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN-8

  • Package Description:

    UDFN-8

  • Manufacturer Package Code:

    517DH

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2018-05-11

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Clock Frequency-Max (fCLK):

    1 MHz

  • Data Polling:

    YES

  • Endurance:

    1000000 Write/Erase Cycles

  • I2C Control Byte:

    1010DDDR

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Memory Density:

    65536 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    8

  • Number of Words:

    8192 words

  • Number of Words Code:

    8000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Page Size:

    32 words

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Ready/Busy:

    YES

  • Reverse Pinout:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.55 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.002 A

  • Supply Current-Max:

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Toggle Bit:

    NO

  • Width:

    2 mm

  • Write Cycle Time-Max (tWC):

    4 ms

  • Write Protection:

    HARDWARE

NV24C64MUW3VLTBG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the NV24C64MUW3VLTBG is 2.7V to 3.6V.
  • To ensure data retention, the device must be powered within the recommended operating voltage range, and the VCC supply voltage must be stable and noise-free.
  • The maximum clock frequency supported by the NV24C64MUW3VLTBG is 20 MHz.
  • No, the NV24C64MUW3VLTBG is not designed to operate at 5V and may be damaged if used in a 5V system. The recommended operating voltage range is 2.7V to 3.6V.
  • The power-up sequence should be VCC first, then CLK, and the power-down sequence should be CLK first, then VCC. This ensures that the device is properly initialized and avoids potential latch-up conditions.
