NV24M01MUW3VTBG - onsemi

Description: Automotive Temperature Grade 1 (-40°C to +125°C); 1.8 V to 5.5 V Supply Voltage Range; 8-pin SOIC and TSSOP Packages; Supports Standard, Fast and FastPlus I2C Protocol; 256-Byte Page Write Buffer; Hardware Write Protection for Entire Memory; Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA); Low Power CMOS Technology; 1,000,000 Program/Erase Cycles; 100 Year Data Retention; This Device is PbFree, Halogen Free/BFR Free and is RoHS Compliant

Download NV24M01MUW3VTBG Model

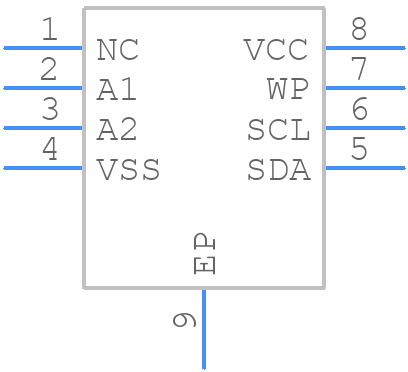

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NV24M01MUW3VTBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - UDFN8 2x3, 0.5P CASE 517DH ISSUE A
click to zoom
3D Models
NV24M01MUW3VTBG - onsemi  - 3D model - Small Outline No-lead - UDFN8 2x3, 0.5P CASE 517DH ISSUE A
click to zoom

NV24M01MUW3VTBG Details

  • Manufacturer Part Number:

    NV24M01MUW3VTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN-8

  • Package Description:

    UDFN-8

  • Manufacturer Package Code:

    517DH

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Additional Feature:

    IT ALSO OPERATES AT 1.8 TO 5.5V SUPPLY VOLTAGE AT 0.4 MHZ FREQUENCY

  • Clock Frequency-Max (fCLK):

    1 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.55 mm

  • Serial Bus Type:

    I2C

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

  • Write Cycle Time-Max (tWC):

    5 ms
