Part Image

NV25256MUW3VTBG - onsemi

Description: Automotive AEC−Q100 Grade 1 (−40°C to +125°C) Qualified • 10 MHz (5 V) SPI Compatible • 1.8 V to 5.5 V Supply Voltage Range • SPI Modes (0,0) & (1,1) • 64−byte Page Write Buffer • Additional Identification Page with Permanent Write Protection • Self−timed Write Cycle • Hardware and Software Protection • Block Write Protection − Protect 1/4, 1/2 or Entire EEPROM Array • Low Power CMOS Technology • 1,000,000 Program/Erase Cycles • 100 Year Data Retention • 8−pad Wettable Flank UDFN 2x3 mm Package

Download NV25256MUW3VTBG Model

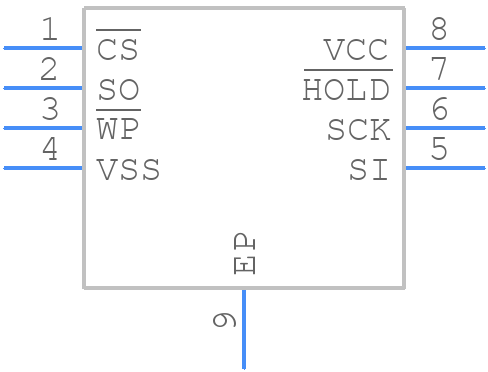

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NV25256MUW3VTBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - UDFN8 2x3, 0.5P CASE 517DH ISSUE A
click to zoom
3D Models
NV25256MUW3VTBG - onsemi  - 3D model - Small Outline No-lead - UDFN8 2x3, 0.5P CASE 517DH ISSUE A
click to zoom

NV25256MUW3VTBG Details

  • Manufacturer Part Number:

    NV25256MUW3VTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN-8

  • Package Description:

    UDFN-8

  • Manufacturer Package Code:

    517DH

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2018-02-06

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Additional Feature:

    IT ALSO OPERATES AT FREQUENCY 5 MHZ AT 1.8 TO 5.5 V SUPPLY VOLTAGE

  • Clock Frequency-Max (fCLK):

    10 MHz

  • Data Retention Time-Min:

    200

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HUSSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, ULTRA THIN PROFILE, SHRINK PITCH

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    5 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.55 mm

  • Standby Current-Max:

    0.000003 A

  • Supply Current-Max:

    0.003 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

  • Write Cycle Time-Max (tWC):

    5 ms

NV25256MUW3VTBG Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the NV25256MUW3VTBG is 10 MHz.
  • Yes, the NV25256MUW3VTBG is compatible with both 5V and 3.3V systems, making it a versatile option for various designs.
  • The NV25256MUW3VTBG can handle up to 1 million write cycles, ensuring reliable data storage over its lifespan.
  • The NV25256MUW3VTBG has a data retention period of at least 100 years, ensuring that stored data remains intact over an extended period.
  • Yes, the NV25256MUW3VTBG is available in various package options, including SOIC, TSSOP, and WLCSP, to accommodate different design requirements.
