The recommended PCB layout for optimal thermal performance involves using a thermal pad on the bottom of the device, and connecting it to a thermal plane on the PCB. The thermal plane should be connected to a heat sink or a thermal via to dissipate heat efficiently.
To ensure reliable operation at high temperatures, it is essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) and storage temperature. Additionally, ensure that the device is properly soldered and the thermal interface material is applied correctly.
The recommended soldering profile for the NV34C02MUW3VTBG involves a peak reflow temperature of 260°C, with a dwell time of 20-30 seconds above 220°C. The soldering process should be done in a nitrogen atmosphere to prevent oxidation.
The NV34C02MUW3VTBG has built-in ESD diodes, but it is still recommended to follow proper ESD handling procedures, such as grounding wrist straps and work surfaces, and using ESD-protective packaging and materials.
The recommended test and measurement procedures for the NV34C02MUW3VTBG involve using a curve tracer or a semiconductor parameter analyzer to measure the device's electrical characteristics, such as voltage and current ratings, and to verify its functionality.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NV34C02MUW3VTBG Overview

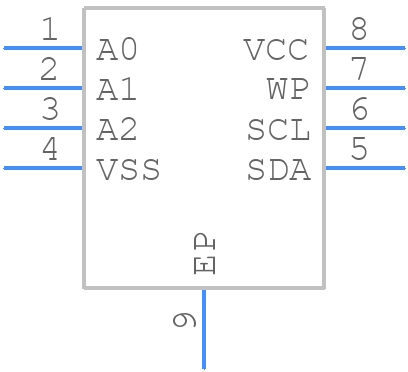

Use the download button to access the NV34C02MUW3VTBG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NV34C,
or try a keyword search, such as EEPROMs
