Description:Qualified for Automotive According to AEC−Q101; 900V rated; Max RDS(on) = 28 mΩ at Vgs = 15V, Id = 60A; High Speed Switching and Low Capacitance; 100% UIL Tested; Devices are RoHS Compliant
The recommended PCB layout for optimal thermal performance involves using a thermal pad on the bottom of the device, connecting it to a large copper area on the PCB, and using thermal vias to dissipate heat to the other side of the board. A minimum of 2oz copper thickness is recommended.
To ensure the device is properly biased, make sure to follow the recommended biasing circuit in the datasheet, and use a stable voltage source with minimal noise and ripple. Also, ensure that the input and output capacitors are properly selected and placed close to the device.
The maximum allowed junction temperature for the NVBG020N090SC1 is 150°C. Operating the device above this temperature can reduce its lifespan and affect its performance.
Yes, the NVBG020N090SC1 is a high-reliability device that is suitable for use in high-reliability applications such as automotive, industrial, and aerospace. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device operates within its specified parameters.
To handle ESD protection for the NVBG020N090SC1, follow the recommended ESD handling procedures during manufacturing and assembly, and use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NVBG020N090SC1 Overview

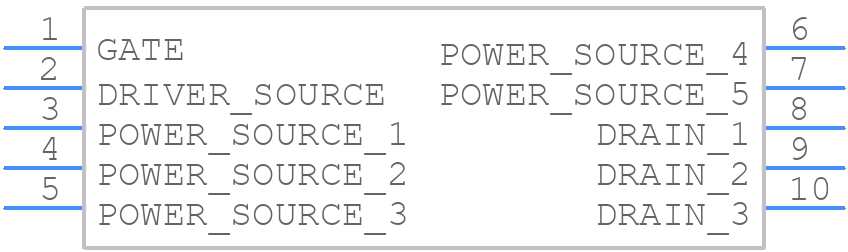

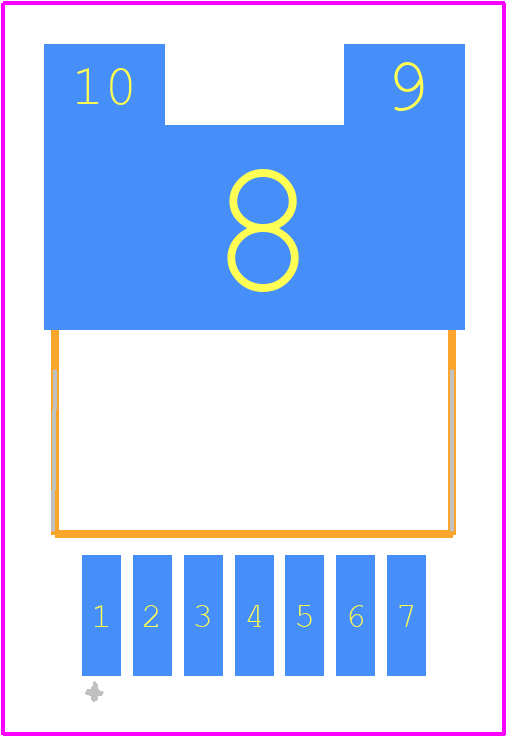

Use the download button to access the NVBG020N090SC1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NVBG0,
or try a keyword search, such as Power Field-Effect Transistors
