The maximum operating temperature range for the NVBG025N065SC1 is -55°C to 150°C.
To ensure reliability, follow the recommended assembly and handling procedures, and ensure that the device is operated within the specified voltage and current ratings. Additionally, consider using a robust PCB design, and implementing adequate thermal management and ESD protection.
A recommended PCB layout for the NVBG025N065SC1 includes a thermal pad connected to a large copper area for heat dissipation. A thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink. Ensure good airflow and consider using a heat sink or fan for high-power applications.
When selecting a gate driver for the NVBG025N065SC1, consider the driver's output current capability, voltage rating, and rise/fall time. Ensure the driver can provide the required voltage and current to fully turn on the device. A driver with a high current capability and fast rise/fall time is recommended.
When paralleling multiple NVBG025N065SC1 devices, ensure that each device has its own gate driver and that the devices are properly synchronized. Use a common gate signal and ensure that the devices are matched in terms of threshold voltage and on-resistance. Also, consider the impact of current sharing and thermal management on the overall system.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NVBG025N065SC1 Overview

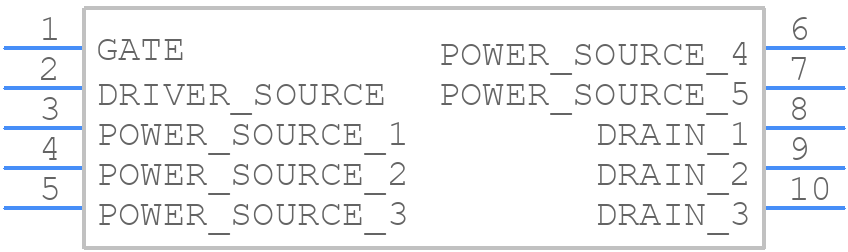

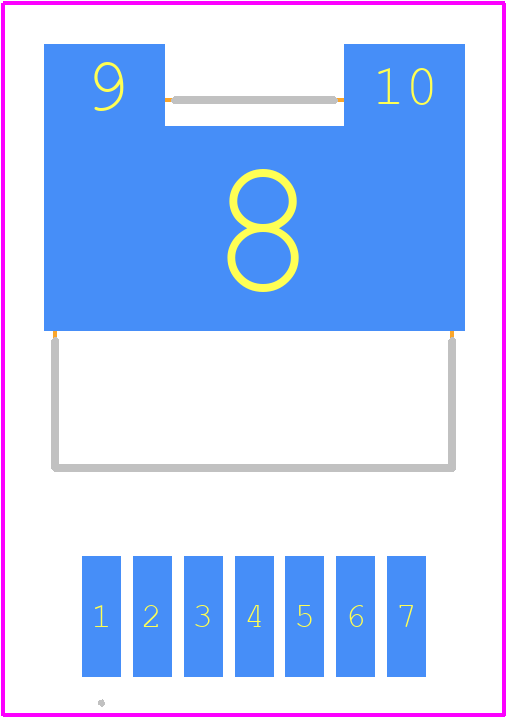

Use the download button to access the NVBG025N065SC1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NVBG0,
or try a keyword search, such as Power Field-Effect Transistors
