NVBG1000N170M1 - onsemi

Description: 18V to 20V Gate Drive; New 1700V M1 technology: 28mohm RDS(ON) with low EON and EOFF losses; 100% Avalanche Tested

Download NVBG1000N170M1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

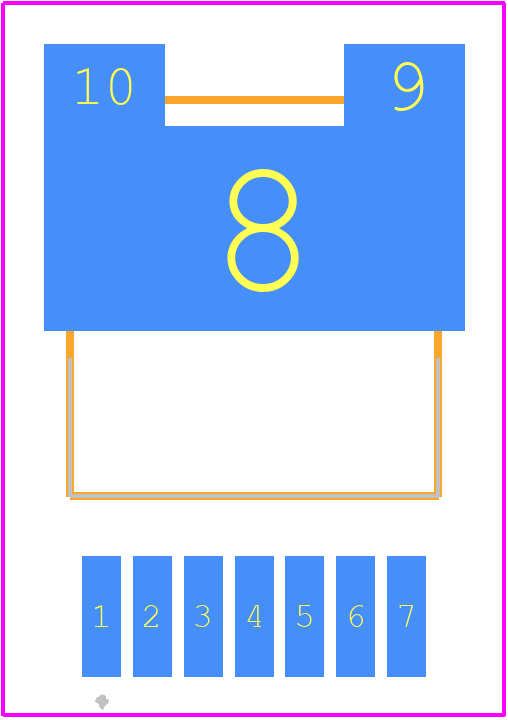

NVBG1000N170M1 - onsemi PCB footprint - Other - Other - D2PAK7 (TO−263−7L HV) CASE 418BJ ISSUE B
click to zoom
3D Models
NVBG1000N170M1 - onsemi  - 3D model - Other - D2PAK7 (TO−263−7L HV) CASE 418BJ ISSUE B
click to zoom

NVBG1000N170M1 Details

  • Manufacturer Part Number:

    NVBG1000N170M1

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    D2PAK7 (TO-263-7L HV)

  • Package Description:

    D2PAK-7L, 7 PIN

  • Manufacturer Package Code:

    418BJ

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    24 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    1700 V

  • Drain Current-Max (ID):

    4.3 A

  • Drain-source On Resistance-Max:

    1.43 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    0.6 pF

  • JEDEC-95 Code:

    TO-263CB

  • JESD-30 Code:

    R-PSSO-G7

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    51 W

  • Pulsed Drain Current-Max (IDM):

    14.6 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

NVBG1000N170M1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NVBG1000N170M1 is -55°C to 175°C.
  • To ensure proper biasing, follow the recommended voltage and current ratings specified in the datasheet. Additionally, ensure the device is operated within the recommended operating conditions, including voltage, current, and temperature ranges.
  • For optimal performance and thermal management, follow the recommended PCB layout guidelines provided in the datasheet, including keeping the device away from heat sources, using thermal vias, and ensuring good thermal conductivity between the device and the heat sink.
  • To prevent electrostatic discharge (ESD) damage, follow proper ESD handling procedures, such as using an ESD wrist strap, ESD mat, or ESD-protected work surface. Additionally, ensure the device is stored in an ESD-protected package when not in use.
  • The NVBG1000N170M1 has undergone various reliability and qualification tests, including AEC-Q101, IEC 60747, and ISO 9001. These tests ensure the device meets the required standards for automotive and industrial applications.
