A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for good airflow.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider using thermal interface materials and following proper PCB design guidelines.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
The correct gate resistor value depends on the specific application, including the switching frequency, gate drive voltage, and device characteristics. A general guideline is to use a gate resistor value between 10 ohms and 100 ohms, but it's recommended to consult the application notes and perform simulations to determine the optimal value.
The NVBGS1D2N08H has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Additionally, consider adding external ESD protection devices, such as TVS diodes, to ensure robust protection in high-risk environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NVBGS1D2N08H Overview

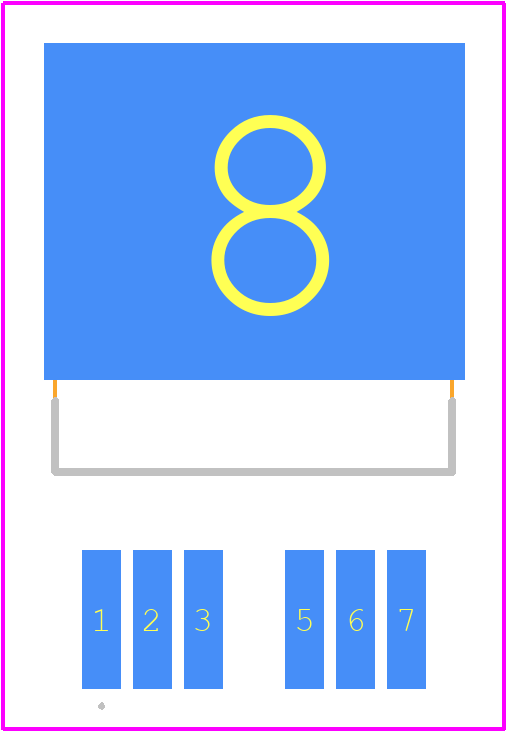

Use the download button to access the NVBGS1D2N08H schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NVBGS,
or try a keyword search, such as Power Field-Effect Transistors
