The recommended PCB layout for optimal thermal performance involves using a thermal pad on the bottom of the package, connecting it to a large copper area on the PCB, and using multiple vias to dissipate heat. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and ensure good thermal conductivity between the device and the heat sink. Additionally, consider using a thermal interface material (TIM) to fill any gaps.
The NVBLS0D5N04M8TXG has built-in ESD protection, but it's still important to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging.
Yes, the NVBLS0D5N04M8TXG is suitable for high-reliability and automotive applications. However, it's essential to follow the recommended operating conditions, and ensure that the device is properly qualified and validated for the specific application.
The recommended soldering and assembly techniques for the NVBLS0D5N04M8TXG include using a soldering iron with a temperature range of 250°C to 260°C, and following the recommended soldering profile. It's also important to use a suitable solder paste and follow the manufacturer's assembly guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NVBLS0D5N04M8TXG Overview

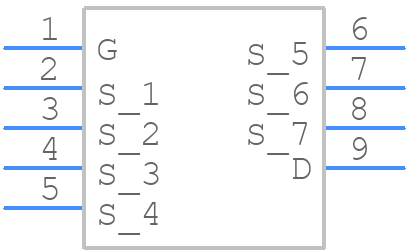

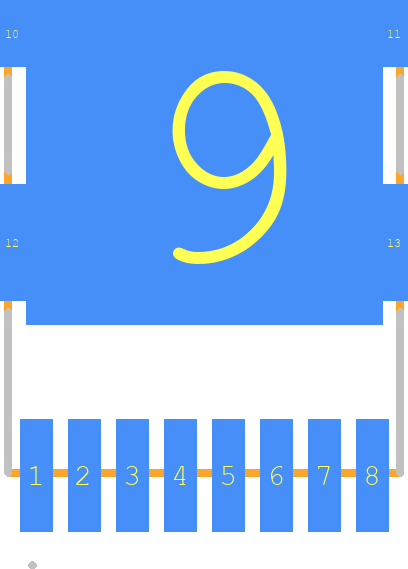

Use the download button to access the NVBLS0D5N04M8TXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NVBLS,
or try a keyword search, such as Power Field-Effect Transistors
