NVF6P02T3G - onsemi

Description: Low rDS(on); Logic Level Gate Drive; Diode Exhibits High Speed, Soft Recovery; Avalanche Energy Specified; AEC−Q101 Qualified and PPAP Capable; RoHS Compliant

Download NVF6P02T3G Model

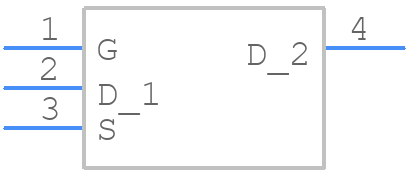

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

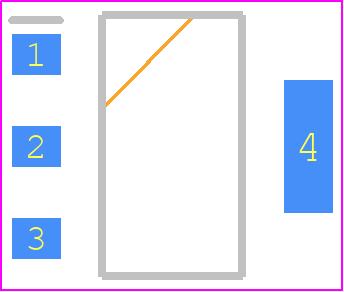

NVF6P02T3G - onsemi PCB footprint - SOT223 (3-Pin) - SOT223 (3-Pin) - SOT−223 (TO−261) CASE 318E−04 ISSUE R
click to zoom
3D Models
NVF6P02T3G - onsemi  - 3D model - SOT223 (3-Pin) - SOT−223 (TO−261) CASE 318E−04 ISSUE R
click to zoom

NVF6P02T3G Details

  • Manufacturer Part Number:

    NVF6P02T3G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-223 (TO-261) 4 LEAD

  • Package Description:

    SOT-223, 4 PIN

  • Pin Count:

    4

  • Manufacturer Package Code:

    0.0318

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    150 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    10 A

  • Drain-source On Resistance-Max:

    0.05 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    150 pF

  • JESD-30 Code:

    R-PDSO-G4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    8.3 W

  • Pulsed Drain Current-Max (IDM):

    35 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

NVF6P02T3G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NVF6P02T3G is -40°C to 150°C.
  • To ensure reliability, follow the recommended assembly and soldering guidelines, and ensure proper thermal management. Additionally, consider using a thermal interface material to improve heat dissipation.
  • The recommended PCB layout and thermal design for the NVF6P02T3G involves using a thermal pad, thermal vias, and a heat sink to dissipate heat efficiently. Consult the onsemi application note for detailed guidelines.
  • The NVF6P02T3G is rated for a maximum voltage of 20V. If your application requires higher voltages, consider using a different device or consulting with an onsemi application engineer.
  • The NVF6P02T3G has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing to prevent damage.
