NVMFD024N06CT1G - onsemi

Description: Small Footprint (5x6 mm); Low RDS(on); Low QG and Capacitance; NVMFWD024N06C − Wettable Flank Option; AEC−Q101 Qualified and PPAP Capable; These Devices are Pb-Free and are RoHS Compliant

Download NVMFD024N06CT1G Model
Schematic

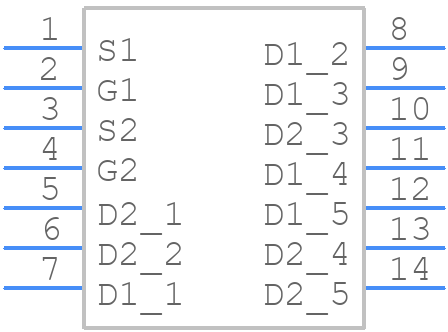

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NVMFD024N06CT1G - onsemi PCB footprint - Other - Other - DFN8 5x6, 1.27P Dual Flag (SO8FL−Dual) CASE 506BT
click to zoom
3D Models
NVMFD024N06CT1G - onsemi  - 3D model - Other - DFN8 5x6, 1.27P Dual Flag (SO8FL−Dual) CASE 506BT
click to zoom

NVMFD024N06CT1G Details

  • Manufacturer Part Number:

    NVMFD024N06CT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SO-8FL Dual / DFN-8

  • Package Description:

    SO-8FL, DFN8, 8 PIN

  • Manufacturer Package Code:

    506BT

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    14 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    24 A

  • Drain-source On Resistance-Max:

    0.0226 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    5.05 pF

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    28 W

  • Pulsed Drain Current-Max (IDM):

    85 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON
