NVMFD027N10MCLT1G - onsemi

Description: Small Footprint (5x6 mm); Low RDS(on); Low QG and Capacitance; NVMFWD040N10MCLT1G − Wettable Flank Option; AEC−Q101 Qualified and PPAP Capable; RoHS Compliant

Download NVMFD027N10MCLT1G Model

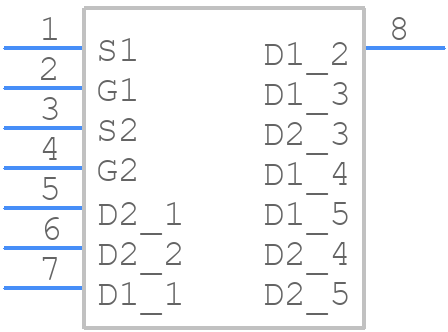

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NVMFD027N10MCLT1G - onsemi PCB footprint - Other - Other - DFN8 5x6, 1.27P Dual Flag (SO8FL−Dual) CASE 506BT ISSUE F_2023AD
click to zoom
3D Models
NVMFD027N10MCLT1G - onsemi  - 3D model - Other - DFN8 5x6, 1.27P Dual Flag (SO8FL−Dual) CASE 506BT ISSUE F_2023AD
click to zoom

NVMFD027N10MCLT1G Details

  • Manufacturer Part Number:

    NVMFD027N10MCLT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SO-8FL Dual / DFN-8

  • Package Description:

    SO-8FL, DFN-8

  • Manufacturer Package Code:

    506BT

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    154 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    28 A

  • Drain-source On Resistance-Max:

    0.026 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    6 pF

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    46 W

  • Pulsed Drain Current-Max (IDM):

    115 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON
