NVMFD5852NLT1G - onsemi

Description: Last Shipments - Power MOSFET 40V, 44A, 6.9 mOhm, Dual N-Channel, SO8-FL, Logic Level.

Download NVMFD5852NLT1G Model

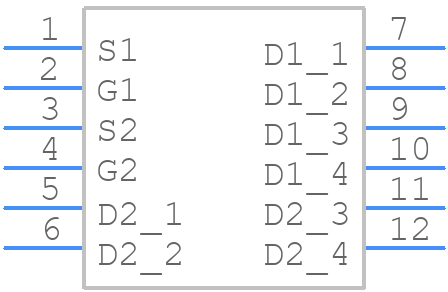

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NVMFD5852NLT1G - onsemi PCB footprint - Other - Other - DFN8 5x6 (SO8FL) CASE 506BT
click to zoom
3D Models
NVMFD5852NLT1G - onsemi  - 3D model - Other - DFN8 5x6 (SO8FL) CASE 506BT
click to zoom

NVMFD5852NLT1G Details

  • Manufacturer Part Number:

    NVMFD5852NLT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN8 5x6, 1.27P Dual Flag (SO8FL-Dual)

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    506BT

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    80 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    15 A

  • Drain-source On Resistance-Max:

    0.012 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    27 W

  • Pulsed Drain Current-Max (IDM):

    329 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

NVMFD5852NLT1G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to ensure good heat dissipation.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material to improve heat transfer between the device and heat sink.
  • The maximum allowed voltage on the input pins is 5.5V, but it's recommended to keep it below 5V to ensure reliable operation and prevent damage to the device.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the input lines, and follow proper handling and storage procedures to prevent ESD damage.
  • Power up the device in the following sequence: VCC, then VIN, and finally the input signals. This ensures proper initialization and prevents latch-up or damage to the device.
