A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to ensure efficient heat dissipation.
Ensure that the device is operated within the recommended voltage and current ranges, and that the PCB is designed to minimize thermal resistance. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
Exceeding the maximum junction temperature can lead to reduced device lifespan, increased thermal resistance, and potentially catastrophic failure. Ensure that the device is operated within the recommended temperature range to prevent premature failure.
Use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins to prevent damage from electrostatic discharge. Follow proper handling and storage procedures to prevent ESD damage during manufacturing and assembly.
When operating multiple devices in parallel, ensure that each device has its own decoupling capacitor and that the PCB is designed to minimize inductive coupling between devices. Also, consider using a common mode choke or other filtering components to reduce electromagnetic interference.
Trust Checks
No trust score is available for this model.
Trust Score Unavailable
Sponsored
NVMFD5873NLT1G Overview

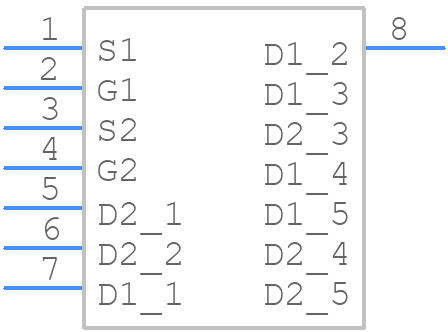

Use the download button to access the NVMFD5873NLT1G 3D model. You can still request or build the schematic symbol and PCB footprint by using the respective build or request forms on this page.
To find more CAD model downloads similar to this part, try a partial part number search, like NVMFD,
or try a keyword search, such as Power Field-Effect Transistors
