NVMFD5C446NLT1G - onsemi

Description: Small Footprint (5x6 mm); Low rDS(on); Low QG and Capacitance; NVMFD5C446NLWF − Wettable Flank Option; AEC−Q101 Qualified and PPAP Capable; RoHS Compliant

Download NVMFD5C446NLT1G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

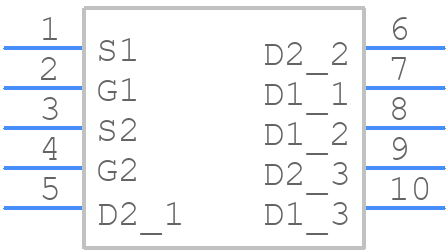

NVMFD5C446NLT1G - onsemi - PCB symbol
click to zoom
PCB Footprints
NVMFD5C446NLT1G - onsemi PCB footprint - Other - Other - NVMFD5C446NLT1G-2
click to zoom
3D Models
NVMFD5C446NLT1G - onsemi - 3D model - Other - NVMFD5C446NLT1G-2
click to zoom

NVMFD5C446NLT1G Details

  • Manufacturer Part Number:

    NVMFD5C446NLT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SO-8FL Dual / DFN-8

  • Package Description:

    SO-8FL, DFN-8

  • Manufacturer Package Code:

    506BT

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.6

  • Avalanche Energy Rating (Eas):

    171 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    25 A

  • Drain-source On Resistance-Max:

    0.0039 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    48 pF

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    125 W

  • Pulsed Drain Current-Max (IDM):

    644 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

NVMFD5C446NLT1G Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve thermal performance. A minimum of 2oz copper thickness and a thermal via array under the package is recommended. Refer to the onsemi application note AND9233/D for more details.
  • Ensure that the device is operated within the recommended voltage and current ratings, and that the PCB is designed to minimize thermal resistance. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
  • The NVMFD5C446NLT1G has built-in ESD protection, but it is still recommended to follow standard ESD handling precautions during assembly and testing. A minimum of 2kV HBM and 100V MM protection is recommended.
  • Yes, the NVMFD5C446NLT1G is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q101 and is PPAP capable. However, additional testing and validation may be required for specific applications.
  • The optimal gate resistance value depends on the specific application requirements. A general guideline is to use a gate resistance value between 10 ohms and 100 ohms. However, it is recommended to consult the onsemi application note AND9233/D for more detailed guidance.
