A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the thermal pad of the NVMFD5C470NLWFT1G to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation across the full temperature range, it's essential to follow the recommended operating conditions, including voltage, current, and power dissipation. Additionally, consider using a thermal management strategy, such as a heat sink or thermal interface material, to keep the device within its specified temperature range.
Exceeding the maximum junction temperature can lead to reduced reliability, decreased performance, and potentially even device failure. It's crucial to ensure that the device operates within its specified temperature range to maintain its performance and longevity.
To handle ESD protection, it's recommended to follow proper handling and storage procedures, such as using anti-static bags or containers, and grounding oneself before handling the device. Additionally, consider implementing ESD protection circuits or devices in the system design to prevent damage from electrostatic discharge.
When assembling or reworking the PCB, it's essential to follow proper soldering techniques, use a soldering iron with a temperature-controlled tip, and avoid applying excessive heat or force, which can damage the device. Additionally, ensure that the PCB is cleaned and dried properly to prevent moisture-related issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NVMFD5C470NLWFT1G Overview

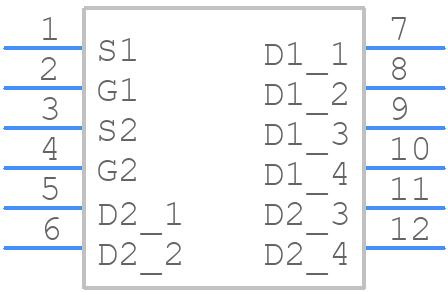

Use the download button to access the NVMFD5C470NLWFT1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NVMFD,
or try a keyword search, such as Power Field-Effect Transistors
