NVMFD5C478NLT1G - onsemi

Description: Low on resistance; High current capability; 100% avalanche tested; AEC−Q101 Qualified and PPAP Capable; NVMFD5C478NLWF − Wettable Flanks Product; RoHS Compliant

Download NVMFD5C478NLT1G Model

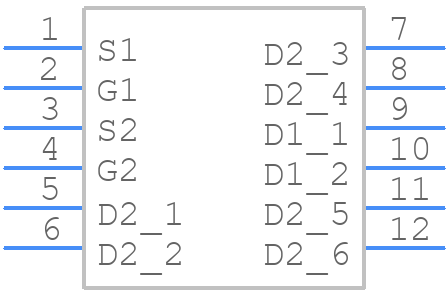

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NVMFD5C478NLT1G - onsemi PCB footprint - Other - Other - DFN8 5x6 (SO8FL) CASE 506BT
click to zoom
3D Models
NVMFD5C478NLT1G - onsemi  - 3D model - Other - DFN8 5x6 (SO8FL) CASE 506BT
click to zoom

NVMFD5C478NLT1G Details

  • Manufacturer Part Number:

    NVMFD5C478NLT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SO-8FL Dual / DFN-8

  • Package Description:

    SO-8FL, DFN-8

  • Manufacturer Package Code:

    506BT

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    48 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    10.5 A

  • Drain-source On Resistance-Max:

    0.025 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    9 pF

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    23 W

  • Pulsed Drain Current-Max (IDM):

    98 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON
