NVMFD5C674NLT1G - onsemi

Description: Small Footprint (5x6 mm); Low RDS(on); Low QG and Capacitance; NVMFD5C674NLWF − Wettable Flank Option for Enhanced Optical Inspection; AEC−Q101 Qualified and PPAP Capable; RoHS Compliant

Download NVMFD5C674NLT1G Model

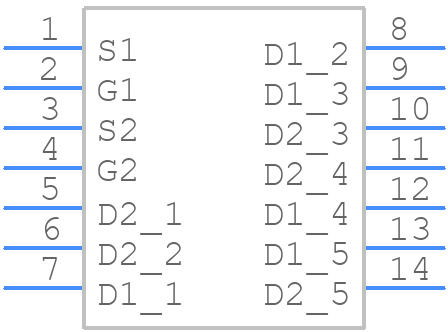

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NVMFD5C674NLT1G - onsemi PCB footprint - Other - Other - DFN8 5x6, 1.27P Dual Flag (SO8FL−Dual) CASE 506BT ISSUE E
click to zoom
3D Models
NVMFD5C674NLT1G - onsemi  - 3D model - Other - DFN8 5x6, 1.27P Dual Flag (SO8FL−Dual) CASE 506BT ISSUE E
click to zoom

NVMFD5C674NLT1G Details

  • Manufacturer Part Number:

    NVMFD5C674NLT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SO-8FL Dual / DFN-8

  • Package Description:

    DFN-8

  • Manufacturer Package Code:

    506BT

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    61 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain-source On Resistance-Max:

    0.0204 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    119 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

NVMFD5C674NLT1G Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Use a temperature-compensated voltage regulator to maintain a stable voltage supply. Also, ensure that the device is operated within the recommended temperature range (-40°C to 125°C) and follow the recommended storage conditions.
  • Follow the JEDEC J-STD-020D.1 standard for soldering and rework. Use a soldering iron with a temperature of 260°C (max) and a dwell time of 3 seconds (max). Avoid using excessive force or bending during rework.
  • Use an ESD-protected workstation and follow proper ESD handling procedures. Ground yourself before handling the device, and use ESD-protective packaging and storage materials.
  • Power-up: VCC first, then VPP. Power-down: VPP first, then VCC. Ensure that VCC and VPP are ramped up and down slowly (10 ms/min) to prevent latch-up or damage.
