Part Image

NVMFD5C674NLWFT1G - onsemi

Description: Small Footprint (5x6 mm); Low RDS(on); Low QG and Capacitance; NVMFD5C674NLWF − Wettable Flank Option for Enhanced Optical Inspection; AEC−Q101 Qualified and PPAP Capable; RoHS Compliant

Download NVMFD5C674NLWFT1G Model

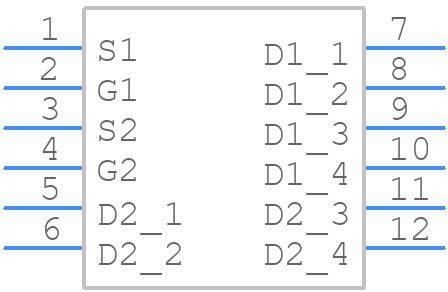

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NVMFD5C674NLWFT1G - onsemi PCB footprint - Other - Other - DFN8 5x6 (SO8FL) CASE 506BT
click to zoom
3D Models
NVMFD5C674NLWFT1G - onsemi  - 3D model - Other - DFN8 5x6 (SO8FL) CASE 506BT
click to zoom

NVMFD5C674NLWFT1G Details

  • Manufacturer Part Number:

    NVMFD5C674NLWFT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SO-8FL Dual / DFN-8

  • Package Description:

    DFN-8

  • Manufacturer Package Code:

    506BT

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    61 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain-source On Resistance-Max:

    0.0204 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    119 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

NVMFD5C674NLWFT1G Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for NVMFD5C674NLWFT1G is -40°C to 125°C.
  • To ensure data retention in NVMFD5C674NLWFT1G, it is recommended to follow the recommended storage conditions, avoid exposure to extreme temperatures, and use a voltage regulator to maintain a stable power supply.
  • The maximum number of erase cycles for NVMFD5C674NLWFT1G is 100,000 cycles.
  • To handle power-on reset (POR) in NVMFD5C674NLWFT1G, it is recommended to use an external POR circuit or a voltage supervisor to ensure a clean power-up sequence.
  • The recommended write endurance for NVMFD5C674NLWFT1G is 100,000 write cycles.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
