Part Image

NVMJS1D6N06CLTWG - onsemi

Description: Small Footprint (5x6mm); Low RDS (ON); Low QG and Capacitance; LFPAK8 Package; AEC-Q101 Qualified and PPAP Capable; These Devices are Pb−Free and are RoHS Compliant

Download NVMJS1D6N06CLTWG Model

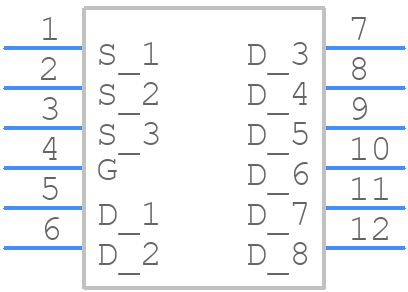

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NVMJS1D6N06CLTWG - onsemi PCB footprint - Other - Other - LFPAK8 4.90x4.80x1.12MM, 1.27P CASE 760AA ISSUE D
click to zoom
3D Models
NVMJS1D6N06CLTWG - onsemi  - 3D model - Other - LFPAK8 4.90x4.80x1.12MM, 1.27P CASE 760AA ISSUE D
click to zoom

NVMJS1D6N06CLTWG Details

  • Manufacturer Part Number:

    NVMJS1D6N06CLTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    LFPAK-8

  • Manufacturer Package Code:

    760AA

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2018-12-27

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Avalanche Energy Rating (Eas):

    451 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    250 A

  • Drain-source On Resistance-Max:

    0.0023 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    45 pF

  • JESD-30 Code:

    R-PDSO-X5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    167 W

  • Pulsed Drain Current-Max (IDM):

    900 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

NVMJS1D6N06CLTWG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing a thermal pad on the bottom of the package, using a minimum of 2oz copper thickness, and ensuring good thermal conduction to the surrounding copper area. A thermal via array can also be used to improve heat dissipation.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using a heat sink, thermal interface material, and ensuring good airflow around the device.
  • The NVMJS1D6N06CLTWG has built-in ESD protection, but it's still important to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and avoiding direct contact with the device pins.
  • Yes, the NVMJS1D6N06CLTWG is qualified for automotive and high-reliability applications, meeting the requirements of AEC-Q101 and other relevant standards. However, it's essential to consult with onsemi's application engineers to ensure the device meets the specific requirements of your application.
  • The recommended gate drive circuits and layout considerations involve using a low-impedance gate drive circuit, minimizing the gate resistance and inductance, and ensuring a low-voltage drop across the gate resistor. A dedicated gate drive IC or a discrete gate driver circuit can be used, and the layout should be designed to minimize parasitic inductance and capacitance.
