NX20P0477UK - NXP

Description: USB Type-C CC1 and CC2 short protection to VBUS • CON_CC1 / CON_CC2: 28VDC AMR • Rd clamp circuit in CON_CC1/CON_CC2 in dead battery condition • Smart corrosion prevention scheme with low current source • 250 mΩ Low RDSon switch • Robust ESD immunity for CON_CC1/CON_CC2 – IEC 61000-4-2 contact discharge: 6 kV – IEC 61000-4-2 air discharge: 8 kV • +/-40 V surge protection on CON_CC1/CON_CC2

Download NX20P0477UK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

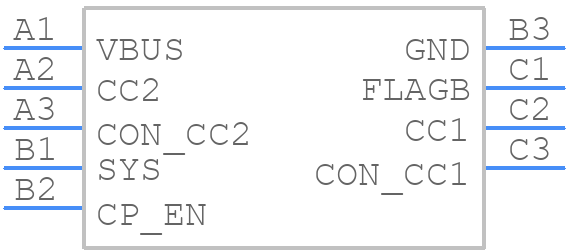

NX20P0477UK - NXP - PCB symbol
