NX20P5090UK - NXP

Description: USB Power Switch Single 20V 15-Pin WLCSP

Download NX20P5090UK Model

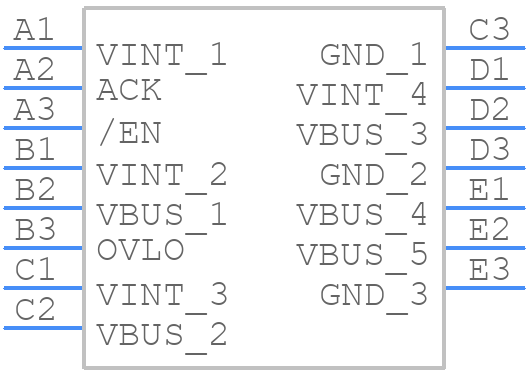

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NX20P5090UK - NXP PCB footprint - BGA - BGA - NX20P5090UK
click to zoom
3D Models
NX20P5090UK - NXP  - 3D model - BGA - NX20P5090UK
click to zoom

NX20P5090UK Details

  • Manufacturer Part Number:

    NX20P5090UK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    R-XBGA-B15

  • Length:

    2.56 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA15,3X5,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.595 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +1.164V

  • Width:

    1.54 mm

NX20P5090UK Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the NX20P5090UK is 1.71V to 3.6V.
  • The NX20P5090UK can be configured for I2C or SPI interface by setting the MODE pin high or low, respectively, during power-up or reset.
  • The maximum data transfer rate for the NX20P5090UK is 10 Mbps for I2C and 20 Mbps for SPI.
  • The interrupt signals generated by the NX20P5090UK can be handled by connecting the INT pin to a microcontroller or a dedicated interrupt handler.
  • The power consumption of the NX20P5090UK in standby mode is typically around 1.5 μA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NX20P5090UK Overview

Use the download button to access the NX20P5090UK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NX20P, or try a keyword search, such as Power Management Circuits

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
