NX30P0121UKZ - NXP

Description: Power Switch ICs - Power Distribution Back to Back output OVP for Qualcomm's platform

Download NX30P0121UKZ Model

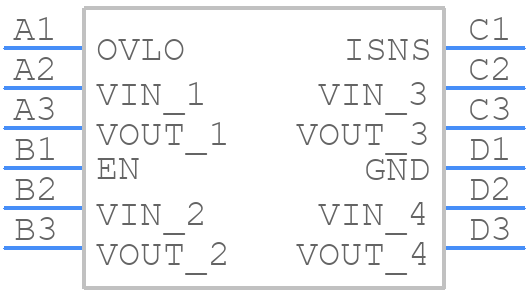

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NX30P0121UKZ - NXP PCB footprint - BGA - BGA - SOT1390-8
click to zoom
3D Models
NX30P0121UKZ - NXP  - 3D model - BGA - SOT1390-8
click to zoom

NX30P0121UKZ Details

  • Manufacturer Part Number:

    NX30P0121UKZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2019-06-19

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-XBGA-B12

  • Length:

    1.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.565 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    1.227

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.25 mm

NX30P0121UKZ Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the NX30P0121UKZ is 1.71V to 3.6V.
  • The NX30P0121UKZ has an internal POR and BOD circuit. The POR ensures that the device resets correctly during power-up, and the BOD detects voltage drops and resets the device if the voltage falls below a certain threshold.
  • The NX30P0121UKZ supports a maximum clock frequency of 12 MHz.
  • The UART interface on the NX30P0121UKZ can be configured using the UARTx_CR1 and UARTx_CR2 registers. The baud rate, data bits, stop bits, and parity can be set using these registers.
  • Yes, the NX30P0121UKZ is designed for low-power applications. It has a low active current consumption of 350 μA/MHz and a low standby current consumption of 1.5 μA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NX30P0121UKZ Overview

Use the download button to access the NX30P0121UKZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NX30P, or try a keyword search, such as Power Management Circuits
