A good PCB layout for the NX3241E0100.000000 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces near the device to minimize thermal resistance.
To ensure reliable operation across the full temperature range, follow the recommended operating conditions, and consider the device's thermal characteristics. Implement thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe junction temperature.
The NX3241E0100.000000 has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent ESD damage. Use ESD-safe materials, tools, and equipment, and consider adding external ESD protection devices if necessary.
The NX3241E0100.000000 is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper qualification and testing. Consult with Diodes Incorporated for specific guidance on using this device in such applications.
Follow the recommended soldering and assembly techniques outlined in the datasheet and industry standards (e.g., IPC-J-STD-001). Use a soldering iron with a temperature range of 250°C to 260°C, and ensure the device is properly aligned and secured during assembly.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NX3241E0100.000000 Overview

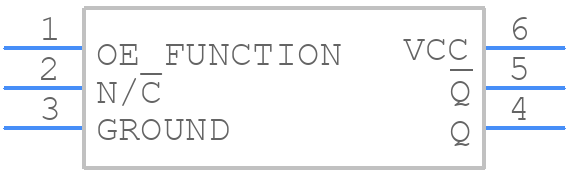

Use the download button to access the NX3241E0100.000000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NX324,
or try a keyword search, such as XO
