NX3DV2567HR-Q100 - NXP

Description: Low-Ohmic Four-Pole Double-Throw Analog Switch - HXQFN16 (U) plastic thermal enhanced extremely thin quad flat package; no leads; 16 terminals, 0.5 mm pitch, 3 mm x 3 mm x 0.5 mm body

Download NX3DV2567HR-Q100 Model

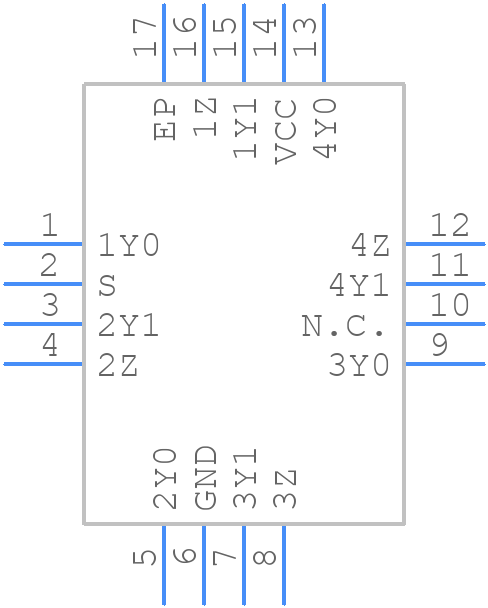

Schematic
