NX3DV3899HRZ - NXP

Description: SSL MATRIX CONTROLLER, REEL 7" Q1 NDP SSB, TAPE + REEL ROHS COMPLIANT: YES

Download NX3DV3899HRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

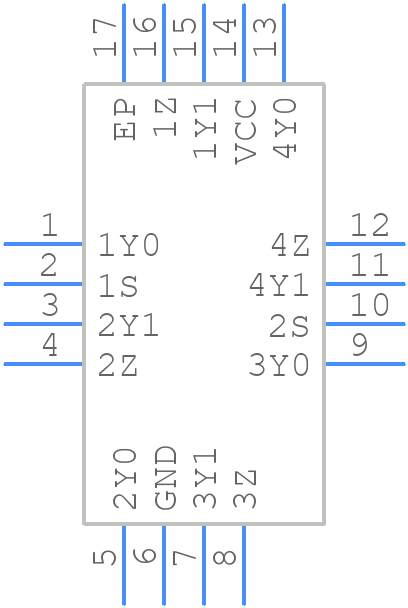

NX3DV3899HRZ - NXP - PCB symbol
click to zoom
PCB Footprints
NX3DV3899HRZ - NXP PCB footprint - Other - Other - NX3DV3899HRZ-2
click to zoom
3D Models
NX3DV3899HRZ - NXP - 3D model - Other - NX3DV3899HRZ-2
click to zoom

NX3DV3899HRZ Details

  • Manufacturer Part Number:

    NX3DV3899HRZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HXQFN-16

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Analog IC - Other Type:

    DPDT

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    0.8 Ω

  • On-state Resistance-Max (Ron):

    10 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HXQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, EXTREMELY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Signal Current-Max:

    0.35 A

  • Supply Current-Max (Isup):

    0.005 mA

  • Supply Voltage-Max (Vsup):

    4.3 V

  • Supply Voltage-Min (Vsup):

    1.4 V

  • Supply Voltage-Nom (Vsup):

    1.65 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    90 ns

  • Switch-on Time-Max:

    120 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm
