Part Image

NX5P2090UKZ - NXP

Description: Power Switch ICs - Power Distribution Logic control high side power switch

Download NX5P2090UKZ Model

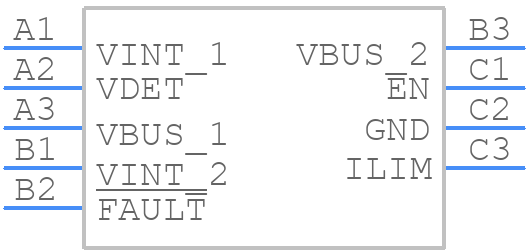

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NX5P2090UKZ - NXP PCB footprint - BGA - BGA - WLCSP9_2020
click to zoom
3D Models
NX5P2090UKZ - NXP  - 3D model - BGA - WLCSP9_2020
click to zoom

NX5P2090UKZ Details

  • Manufacturer Part Number:

    NX5P2090UKZ

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CSP

  • Package Description:

    WLCSP-9

  • Pin Count:

    9

  • Manufacturer Package Code:

    OL-NX5P2090UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Built-in Protections:

    OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • JESD-30 Code:

    S-PBGA-B9

  • Length:

    1.36 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.015 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Screening Level:

    IEC-60134

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.36 mm

NX5P2090UKZ Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the NX5P2090UKZ is 1.71V to 5.5V.
  • To ensure proper power-up, the VCC pin should be powered up before the VIO pin, and the VCC pin should be powered down before the VIO pin.
  • The maximum current rating for the NX5P2090UKZ is 100mA.
  • The reset pin (RST) should be pulled high during power-up to ensure proper initialization of the device.
  • The EN pin is an active-low enable input that allows the device to be enabled or disabled. When EN is low, the device is enabled, and when EN is high, the device is disabled.
