NX7663JB-BC-AZ footprint, schematic symbol and 3D model by Renesas Electronics

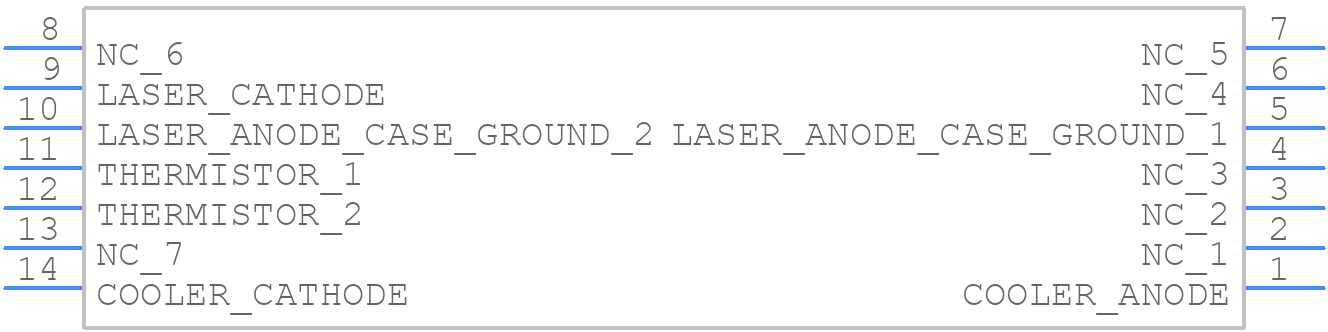

Symbol

click to zoom

PCB Footprints

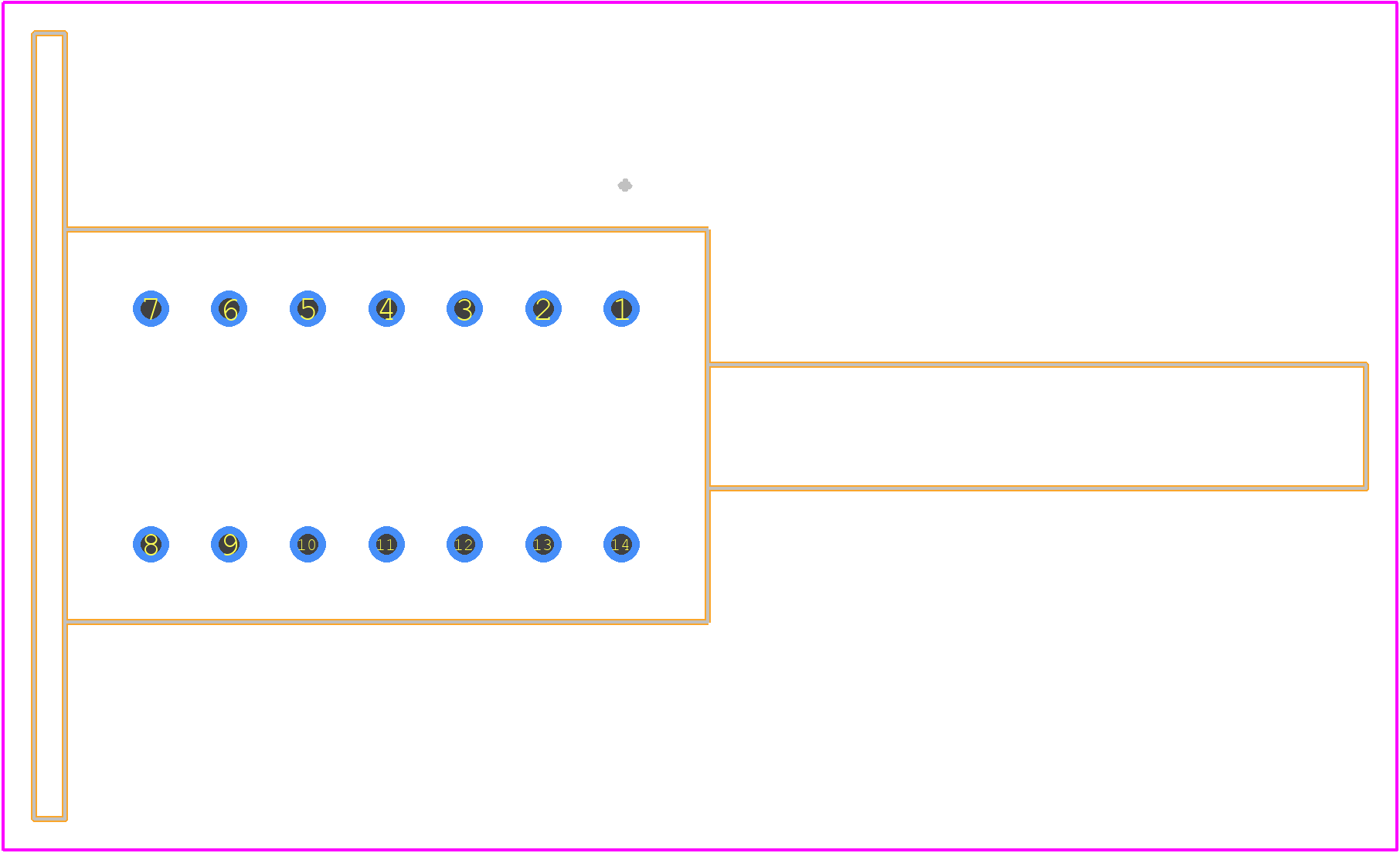

NX7663JB-BC-AZ - Renesas Electronics PCB footprint - Other - Other - 14-DIP Module1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NX7663JB-BC-AZ
Part Number NX7663JB-BC-AZ
Manufacturer Renesas Electronics
Pin Count 14
Part Category Diode
Package Category Other
Footprint Name Other - 14-DIP Module1
Released Date Dec 27, 2019
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

NX7663JB-BC-AZ Details

Manufacturer Part Number:
NX7663JB-BC-AZ
Brand Name:
Renesas
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
Fiber Optic Device Type:
PULSED LASER DIODE EMITTER

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

NX7663JB-BC-AZ Overview

Use the download button to access the NX7663JB-BC-AZ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like NX766, or try a keyword search, such as Fiber Optic Emitters
