Description:3 mohm / 1200 V M3S SiC MOSFET Half−Bridge; These Devices are Pb−Free, Halide Free and are RoHS Compliant; Excellent FOM [ = Rdson * Eoss ]; 15V to 18V Gate Drive
The SOA is not explicitly stated in the datasheet, but it can be calculated using the provided thermal and electrical characteristics. A safe operating area can be estimated by considering the maximum voltage, current, and power dissipation ratings.
To ensure the MOSFET is fully turned on, the gate-source voltage (Vgs) should be at least 10V, and the gate drive should be able to provide sufficient current to charge the gate capacitance quickly.
A good PCB layout should minimize the thermal resistance between the MOSFET and the heat sink. Use a copper pour on the PCB to dissipate heat, and consider using a heat sink with a thermal interface material. The datasheet provides a thermal model that can be used for simulation and design optimization.
Yes, the NX003P120M3F2PT HG is suitable for high-frequency switching applications due to its low gate charge, low output capacitance, and fast switching times. The datasheet provides information on the MOSFET's high-frequency characteristics, such as the gate resistance and output capacitance, which can be used to design and simulate the application.
The NX003P120M3F2PT HG has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent ESD damage. For latch-up prevention, ensure that the gate-source voltage is within the recommended range, and the MOSFET is not subjected to high dv/dt or di/dt rates.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NXH003P120M3F2PTHG Overview

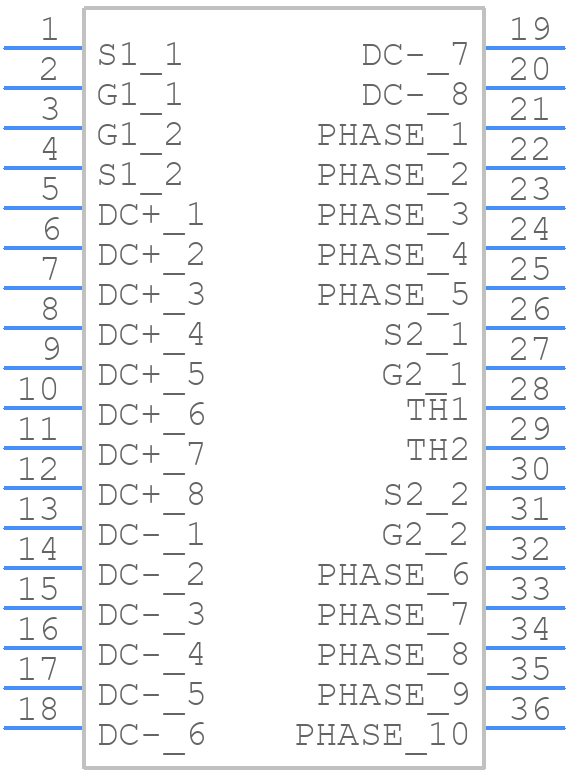

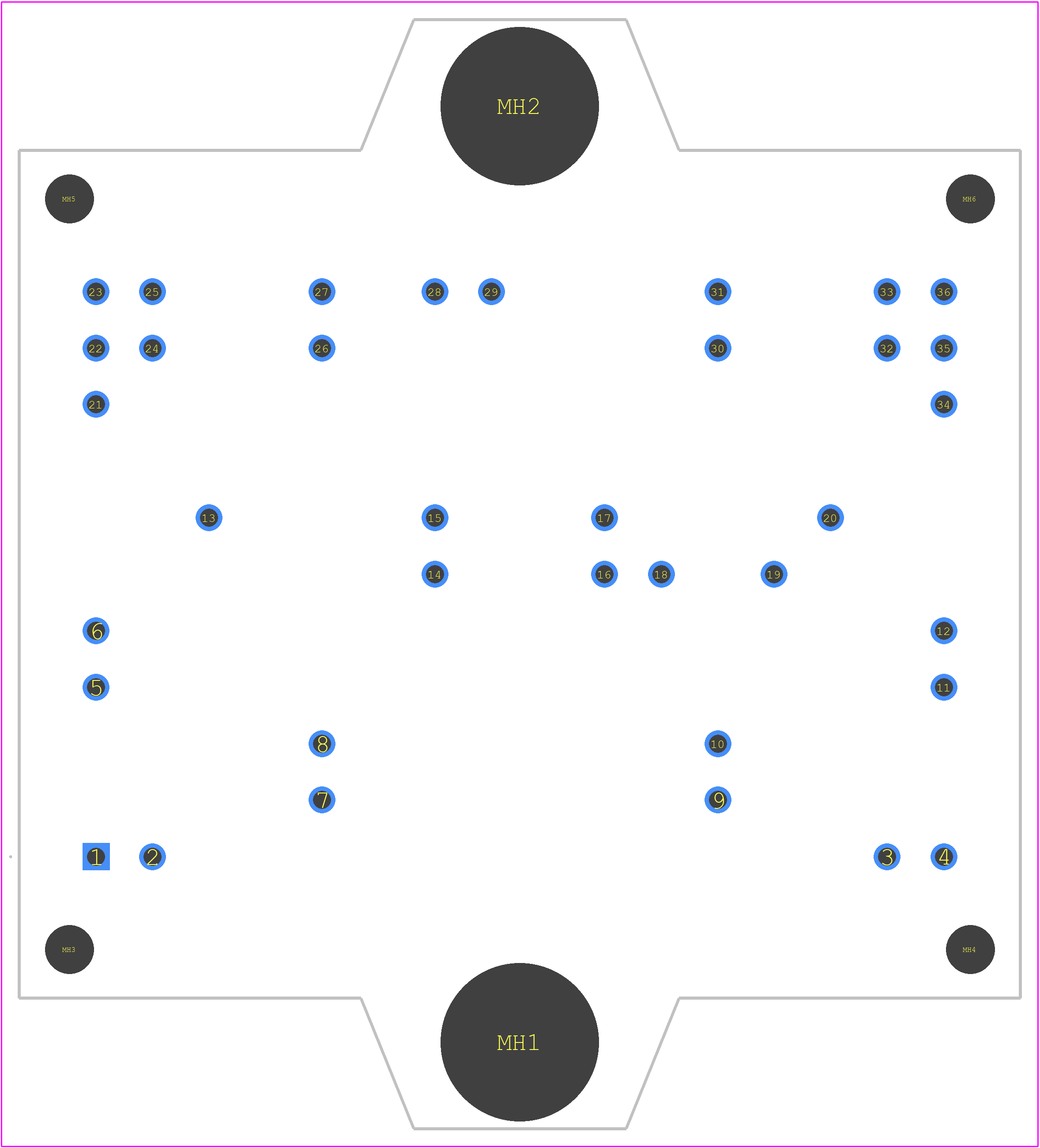

Use the download button to access the NXH003P120M3F2PTHG schematic symbol, PCB footprint, and 3D model.
