The recommended PCB layout for optimal thermal performance involves using a minimum of 2 oz copper thickness, a thermal relief pattern under the device, and a solid copper pour on the top and bottom layers. Additionally, it's recommended to use vias to connect the thermal pad to the bottom layer to improve heat dissipation.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Proper thermal design, including a heat sink and thermal interface material, is also crucial. Furthermore, consider derating the device's power handling capabilities at higher temperatures.
The NXH003P120M3F2PTNG has built-in ESD protection, but it's still essential to follow proper handling and storage precautions to prevent damage. This includes using an ESD wrist strap or mat, storing the devices in anti-static packaging, and avoiding touching the pins or leads.
Yes, the NXH003P120M3F2PTNG is suitable for high-reliability and automotive applications. It's AEC-Q101 qualified and meets the requirements for automotive-grade reliability. However, it's essential to follow the recommended operating conditions, and consider additional testing and validation for specific application requirements.
To troubleshoot and debug issues with the NXH003P120M3F2PTNG, start by reviewing the datasheet and application notes. Check for proper PCB layout, thermal design, and component selection. Use oscilloscopes and other diagnostic tools to identify voltage and current anomalies. Consult onsemi's technical support resources and application notes for guidance on specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NXH003P120M3F2PTNG Overview

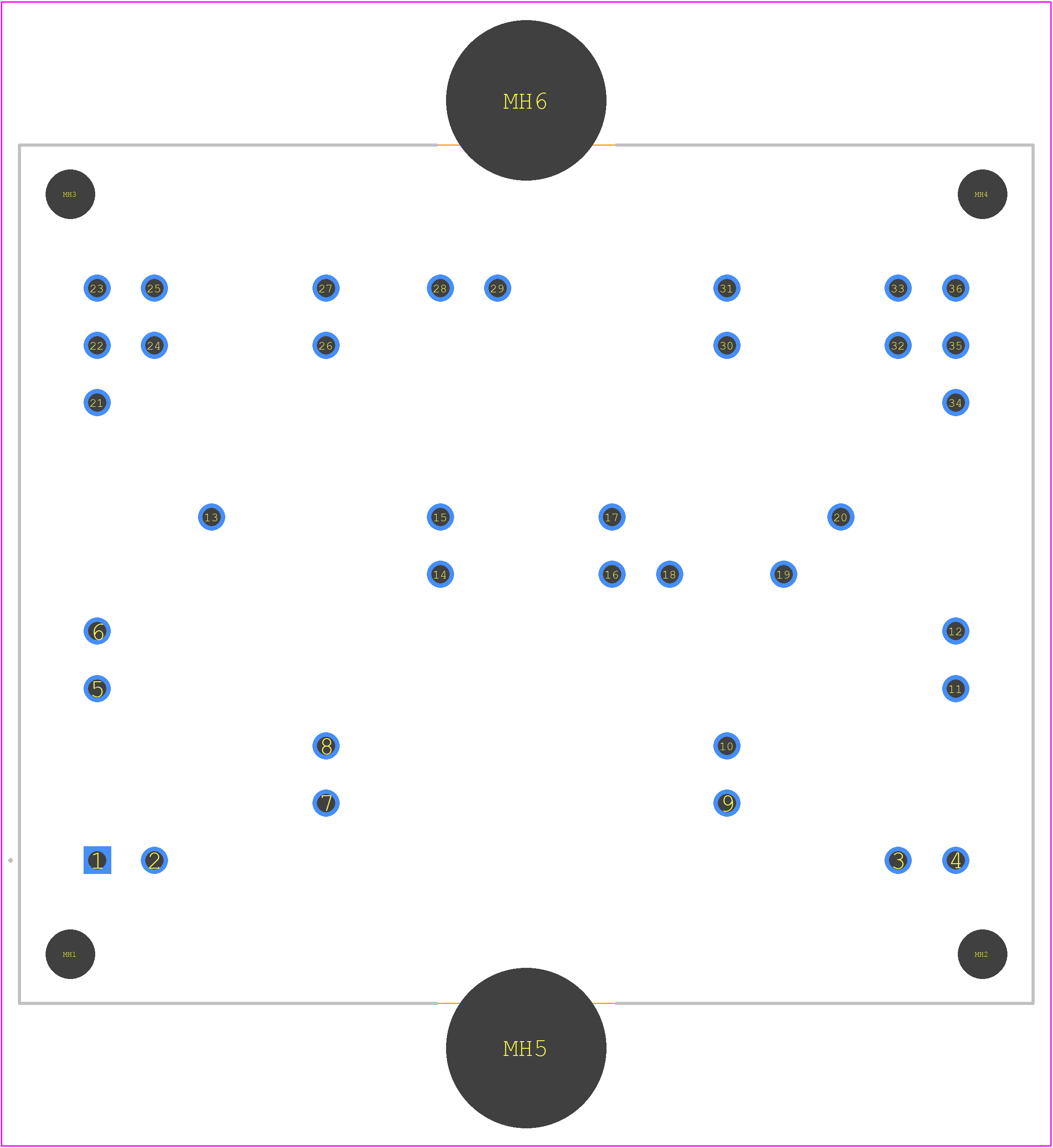

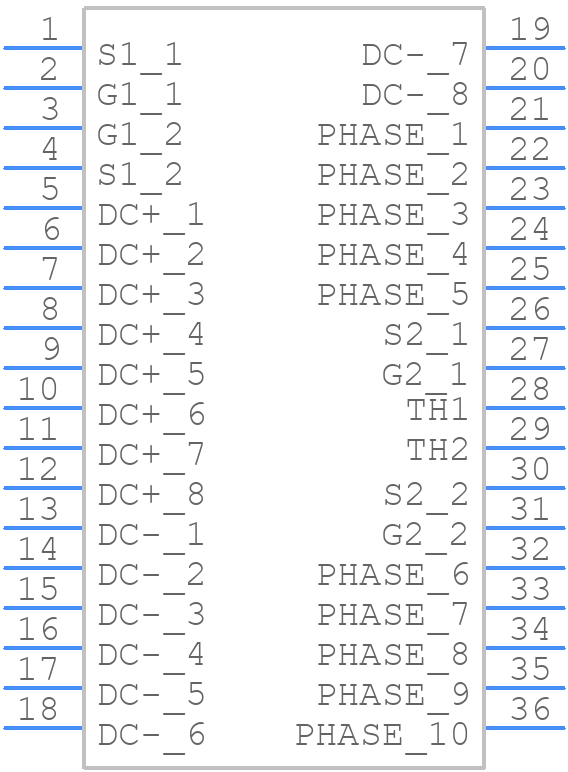

Use the download button to access the NXH003P120M3F2PTNG schematic symbol, PCB footprint, and 3D model.
