Description:Excellent FOM [ = Rdson * Eoss ]; 15V to 18V Gate Drive; 6 mohm / 1200 V M3S SiC MOSFET Half−Bridge; These Devices are Pb−Free, Halide Free and are RoHS Compliant
A good PCB layout should ensure minimal thermal resistance, use thermal vias, and keep high-current paths short. A heat sink or thermal pad can be used to improve heat dissipation. Consult onsemi's application notes and thermal management guidelines for more information.
Choose a gate driver that can provide a high enough gate current (e.g., 1-2 A) and voltage (e.g., 10-15 V) to ensure fast switching times. Consider the driver's output impedance, rise/fall times, and input logic compatibility. onsemi's gate driver selection guide can be helpful.
The SOA is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal and electrical characteristics. Consult onsemi's application notes or contact their support team for guidance on SOA calculations and limitations.
Use proper PCB layout techniques, such as separating high-frequency and low-frequency circuits, using shielding, and minimizing loop areas. Implement EMI filters, and consider using a common-mode choke or ferrite beads to reduce emissions. Consult onsemi's EMI/EMC guidelines and application notes for more information.
The device's reliability and lifetime depend on factors like temperature, voltage, current, and switching frequency. Consult onsemi's reliability reports, application notes, and datasheet for information on FIT rates, MTBF, and expected lifetime under different operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NXH006P120M3F2PTHG Overview

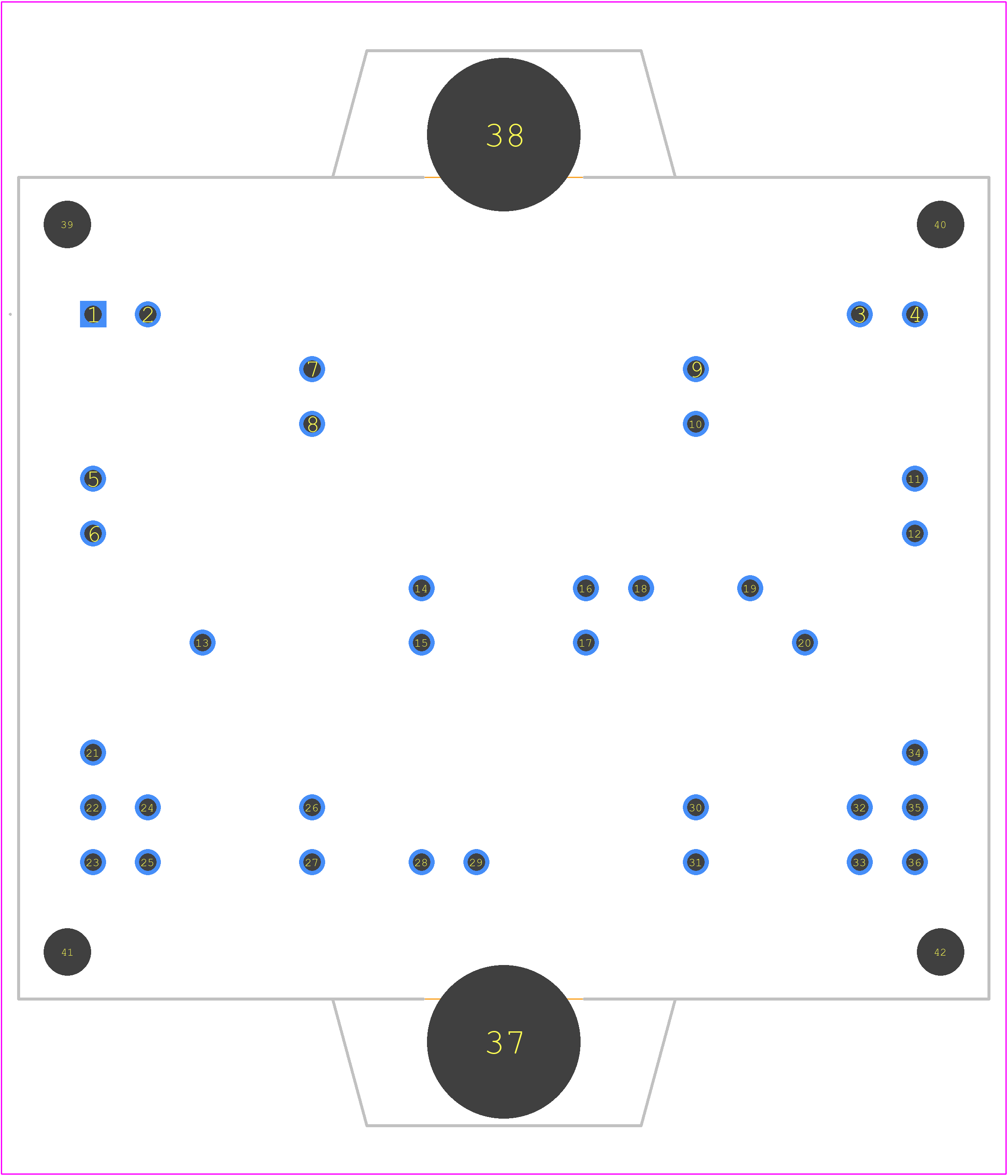

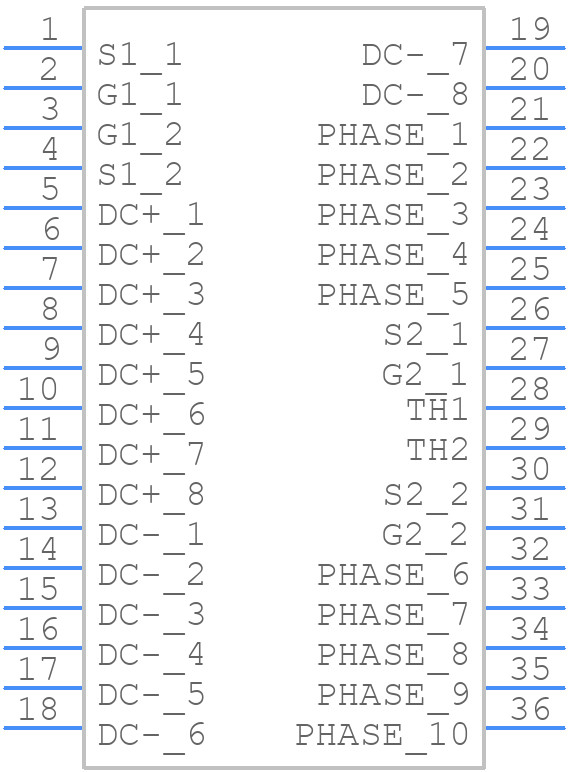

Use the download button to access the NXH006P120M3F2PTHG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NXH00,
or try a keyword search, such as Power Field-Effect Transistors
