NXH010P120M3F1PTG - onsemi

Description: Excellent FOM [ = Rdson * Eoss ]; 15V to 18V Gate Drive; 10 mohm / 1200 V M3S SiC MOSFET Half−Bridge; These Devices are Pb−Free, Halide Free and are RoHS Compliant

Download NXH010P120M3F1PTG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NXH010P120M3F1PTG - onsemi - PCB symbol
click to zoom
PCB Footprints

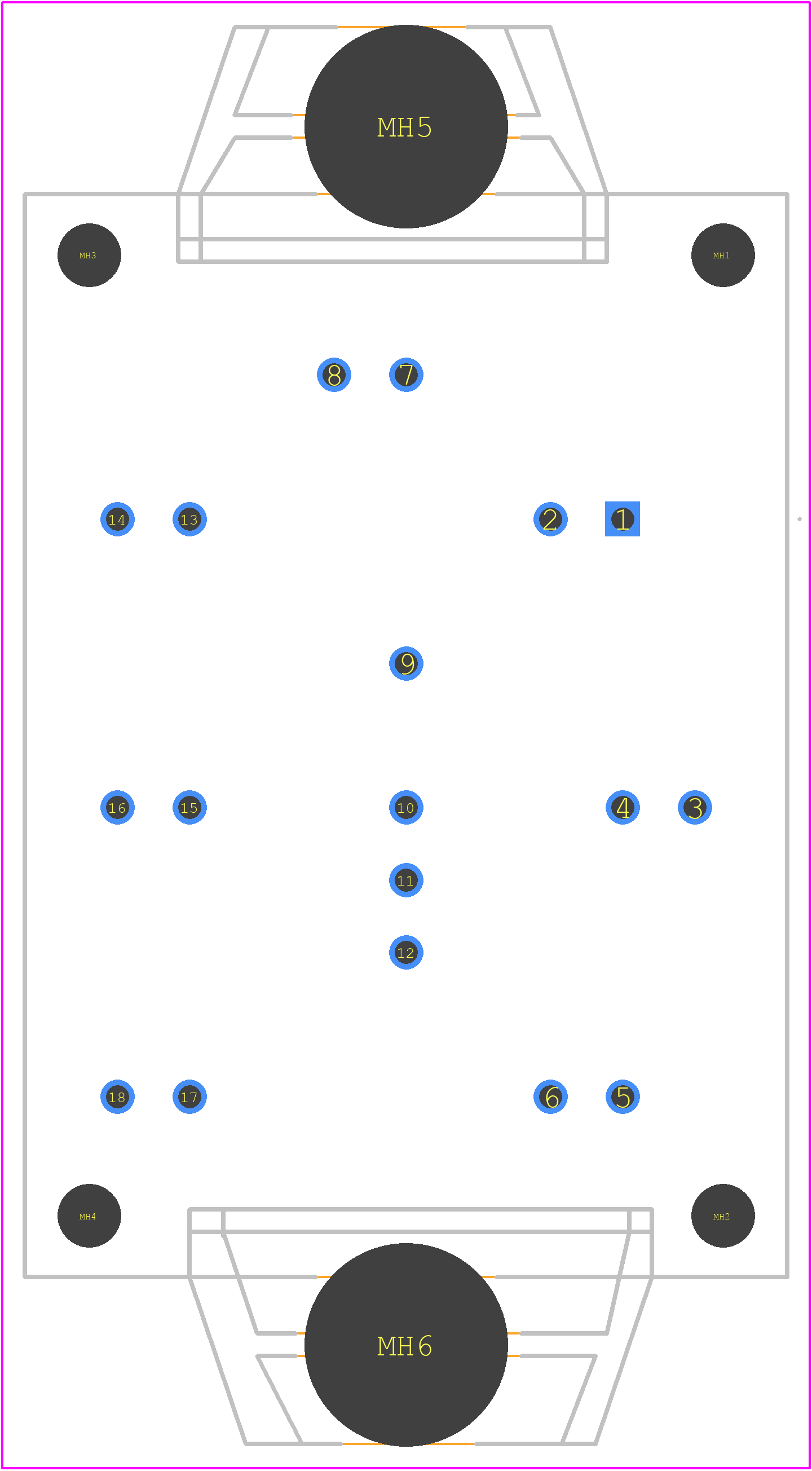

NXH010P120M3F1PTG - onsemi PCB footprint - Other - Other - NXH010P120M3F1PTG-5
click to zoom
3D Models
NXH010P120M3F1PTG - onsemi - 3D model - Other - NXH010P120M3F1PTG-5
click to zoom

NXH010P120M3F1PTG Details

  • Manufacturer Part Number:

    NXH010P120M3F1PTG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PIM18 33.8x42.5 (PRESS FIT)

  • Manufacturer Package Code:

    180BW

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NXH010P120M3F1PTG Overview

Use the download button to access the NXH010P120M3F1PTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NXH01, or try a keyword search, such as Power Field-Effect Transistors
