A good PCB layout should ensure minimal thermal resistance, use thermal vias, and keep the device away from heat sources. A heat sink or thermal pad can be used to improve heat dissipation. Consult onsemi's application notes and thermal management guidelines for more information.
Choose a gate driver that can provide a high enough gate current and voltage to ensure fast switching times and low power losses. Consider the driver's output current, voltage, and rise/fall times. onsemi recommends using a gate driver with a minimum output current of 1A and a voltage rating of 10V to 15V.
The SOA limits are not explicitly stated in the datasheet, but they can be estimated based on the device's thermal and electrical characteristics. Consult onsemi's application notes and SOA calculation guidelines to determine the safe operating area for your specific application.
Use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins to prevent damage from electrostatic discharge. Follow onsemi's ESD protection guidelines and industry standards (e.g., IEC 61000-4-2) for proper implementation.
The reliability and lifetime of the NXH010P120MNF1PNG depend on various factors, including operating conditions, temperature, and quality of the device. onsemi provides reliability data and guidelines in their application notes and quality reports. Consult these resources for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NXH010P120MNF1PNG Overview

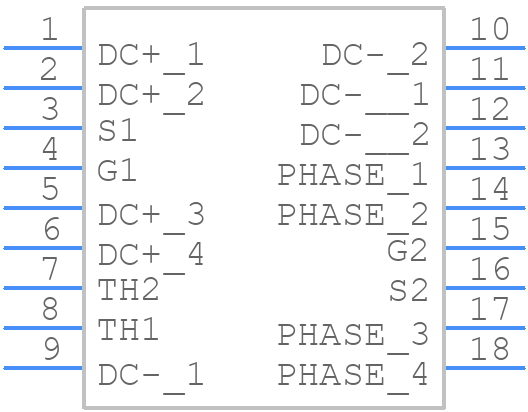

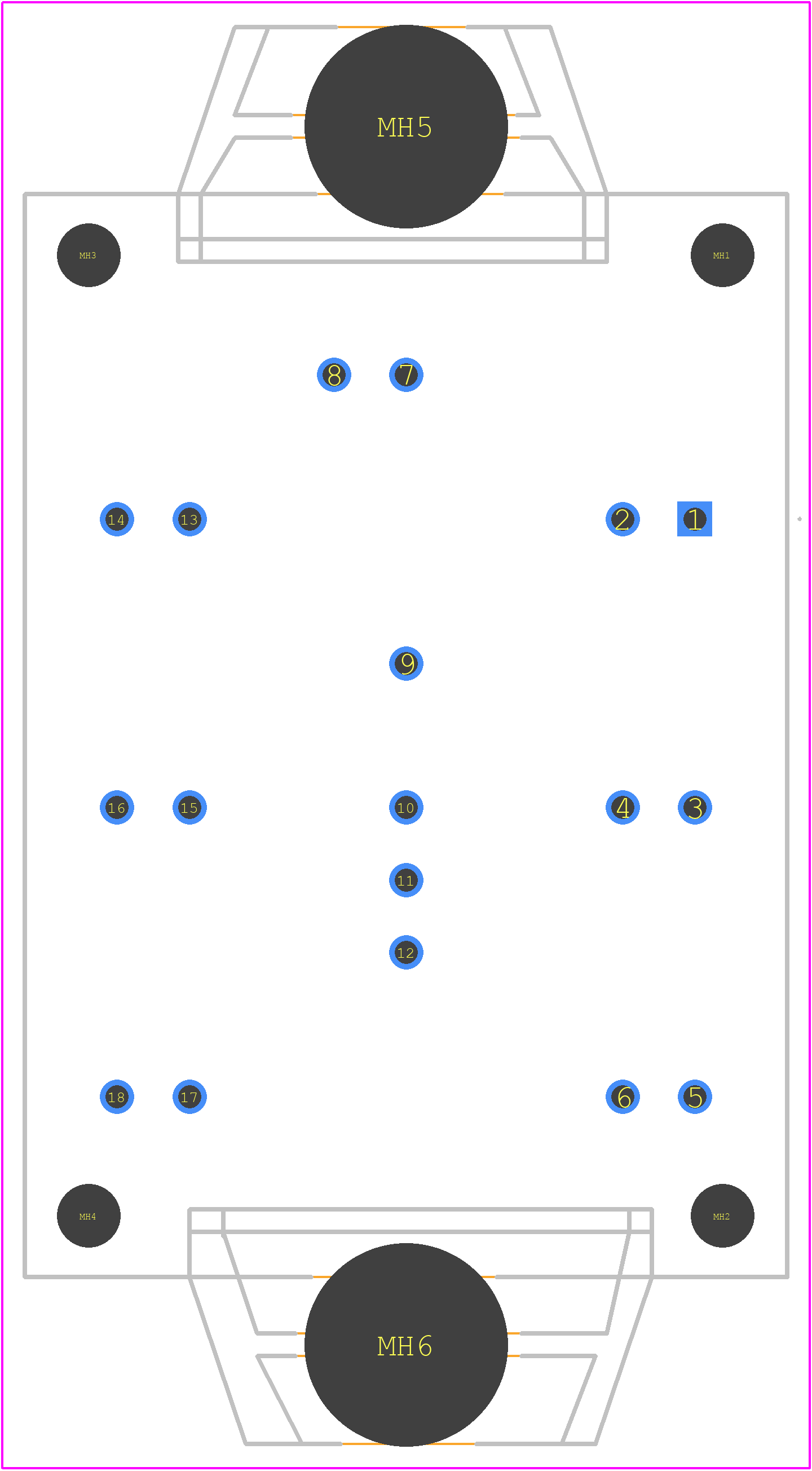

Use the download button to access the NXH010P120MNF1PNG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NXH01,
or try a keyword search, such as Power Field-Effect Transistors
