NXH010P120MNF1PTG - onsemi

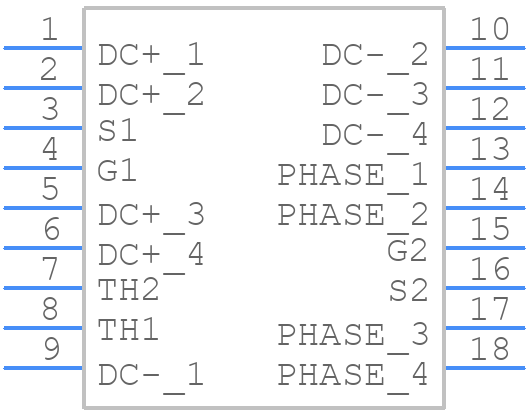

NXH010P120MNF1PTG Details

• Manufacturer Part Number:

  NXH010P120MNF1PTG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

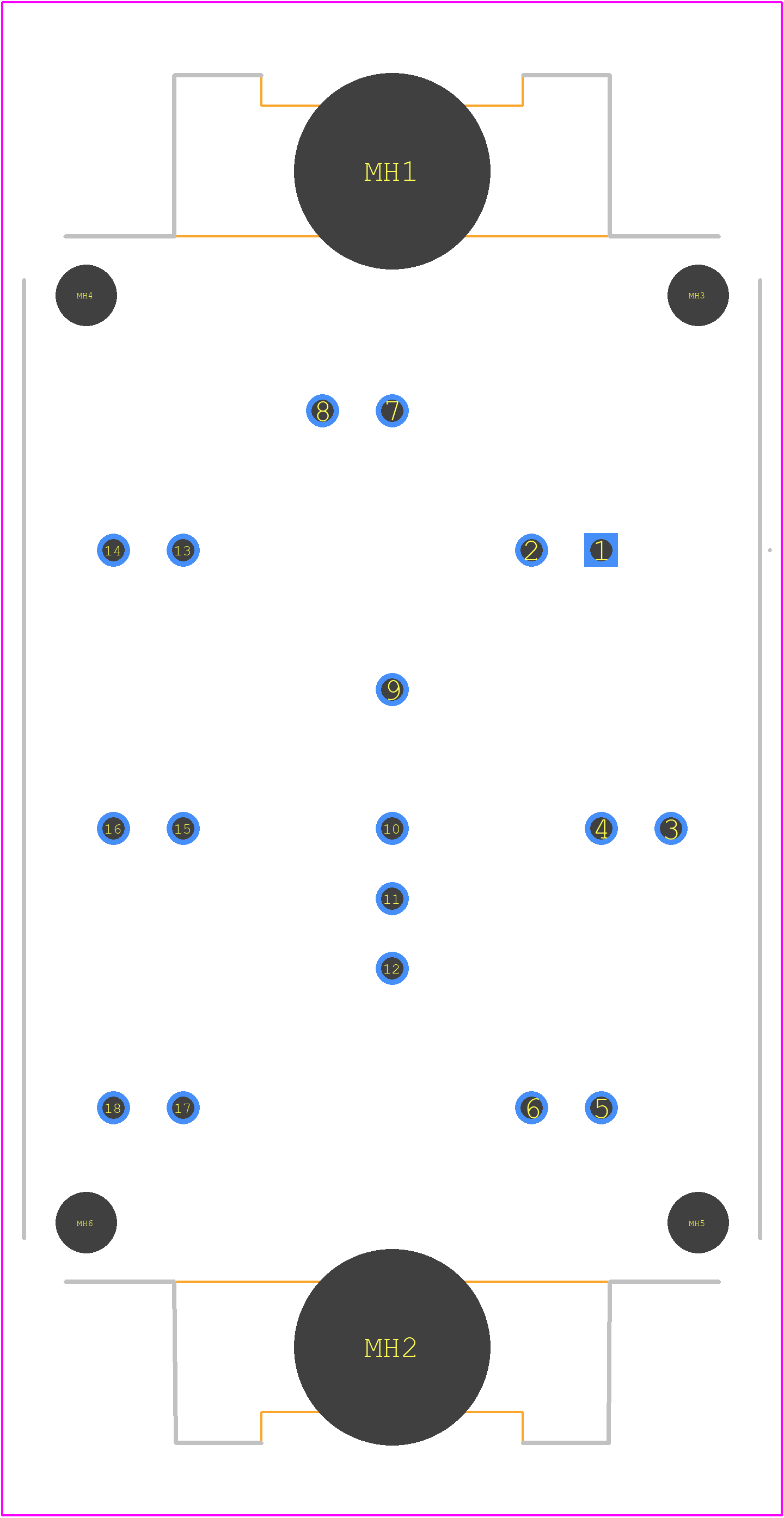

  PIM18 33.8x42.5 (PRESS FIT)

• Manufacturer Package Code:

  180BW

• ECCN Code:

  EAR99

• Manufacturer:

  onsemi

• YTEOL:

  5

• Case Connection:

  ISOLATED

• Configuration:

  SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

• DS Breakdown Voltage-Min:

  1200 V

• Drain Current-Max (ID):

  114 A

• Drain-source On Resistance-Max:

  0.014 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  39 pF

• JESD-30 Code:

  R-XUFM-X18

• Number of Elements:

  2

• Number of Terminals:

  18

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  250 W

• Pulsed Drain Current-Max (IDM):

  342 A

• Surface Mount:

  NO

• Terminal Form:

  UNSPECIFIED

• Terminal Position:

  UPPER

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON CARBIDE
