NXH015F120M3F1PTG - onsemi

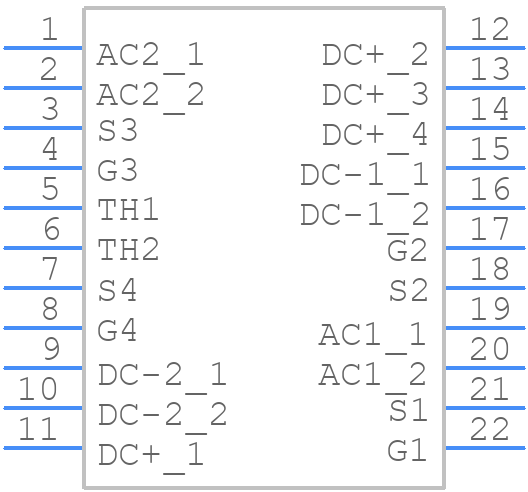

NXH015F120M3F1PTG Details

• Manufacturer Part Number:

  NXH015F120M3F1PTG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

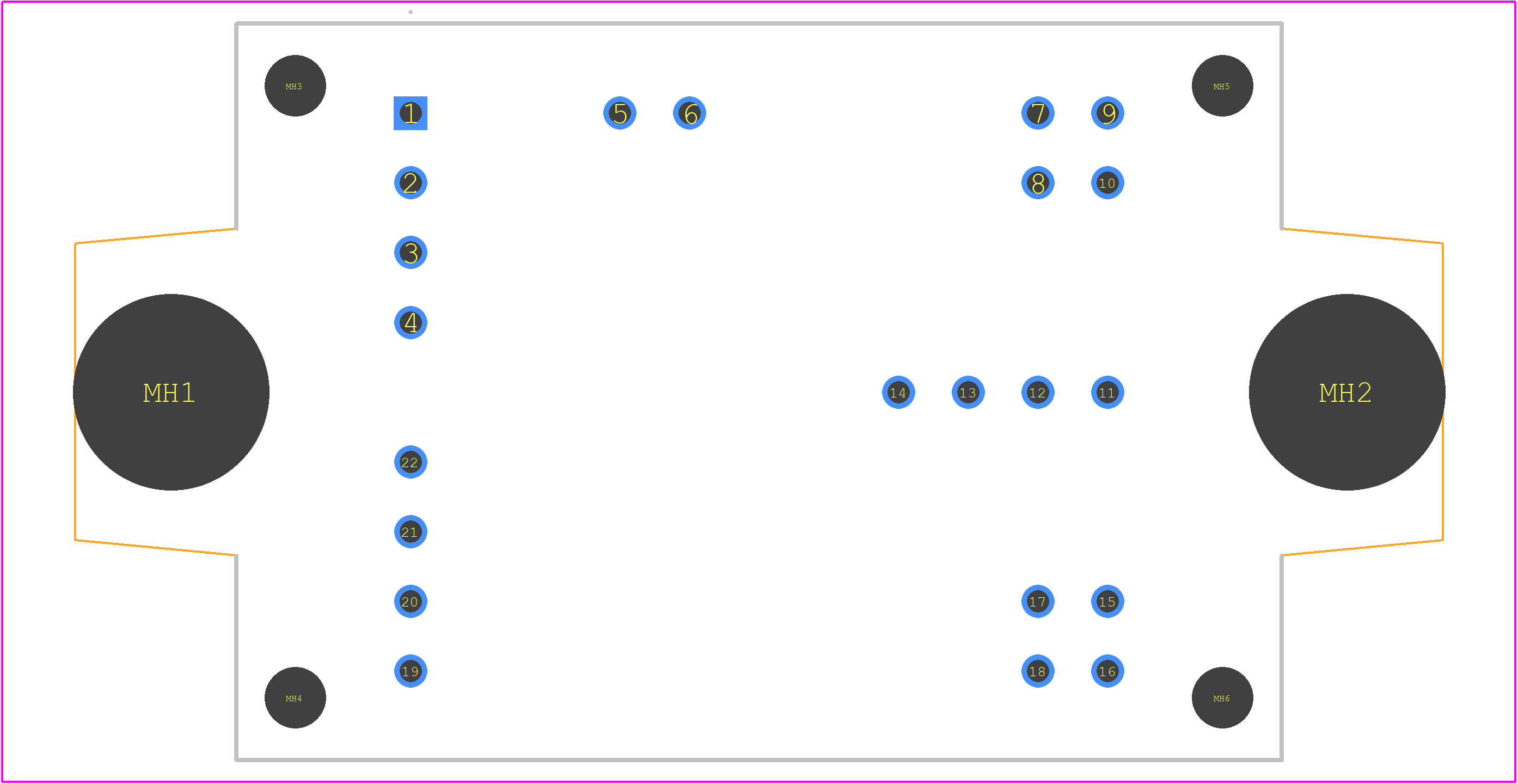

• Part Package Code:

  PIM22 33.80x42.50x10.00

• Package Description:

  MODULE-22

• Manufacturer Package Code:

  180HL

• ECCN Code:

  EAR99

• Factory Lead Time:

  10 Weeks

• Manufacturer:

  onsemi

• Case Connection:

  ISOLATED

• Configuration:

  COMPLEX

• DS Breakdown Voltage-Min:

  1200 V

• Drain Current-Max (ID):

  77 A

• Drain-source On Resistance-Max:

  0.019 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  20.1 pF

• JESD-30 Code:

  R-XUFM-X22

• Number of Elements:

  4

• Number of Terminals:

  22

• Operating Mode:

  DEPLETION MODE

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  198 W

• Pulsed Drain Current-Max (IDM):

  232 A

• Surface Mount:

  NO

• Terminal Form:

  UNSPECIFIED

• Terminal Position:

  UPPER

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON CARBIDE
