The recommended PCB layout and thermal management for the NXH40T120L3Q1SG can be found in the onsemi application note AND9093/D, which provides guidelines for thermal design, PCB layout, and assembly considerations.
The device requires a specific biasing and configuration to operate optimally. Refer to the onsemi application note AND9094/D, which provides detailed information on biasing, configuration, and operating conditions for the NXH40T120L3Q1SG.
The NXH40T120L3Q1SG has undergone various reliability and qualification tests, including AEC-Q101, IATF 16949, and ISO 9001. For detailed information, refer to the onsemi quality and reliability report, which can be obtained through the onsemi website or by contacting onsemi customer support.
Yes, the NXH40T120L3Q1SG is sensitive to electrostatic discharge (ESD). It is essential to follow proper ESD protection and handling procedures, as outlined in the onsemi ESD protection and handling guidelines, to prevent damage to the device.
The NXH40T120L3Q1SG should be stored and shipped in accordance with the onsemi storage and shipping guidelines, which include specific temperature, humidity, and packaging requirements to prevent damage and ensure device reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NXH40T120L3Q1SG Overview

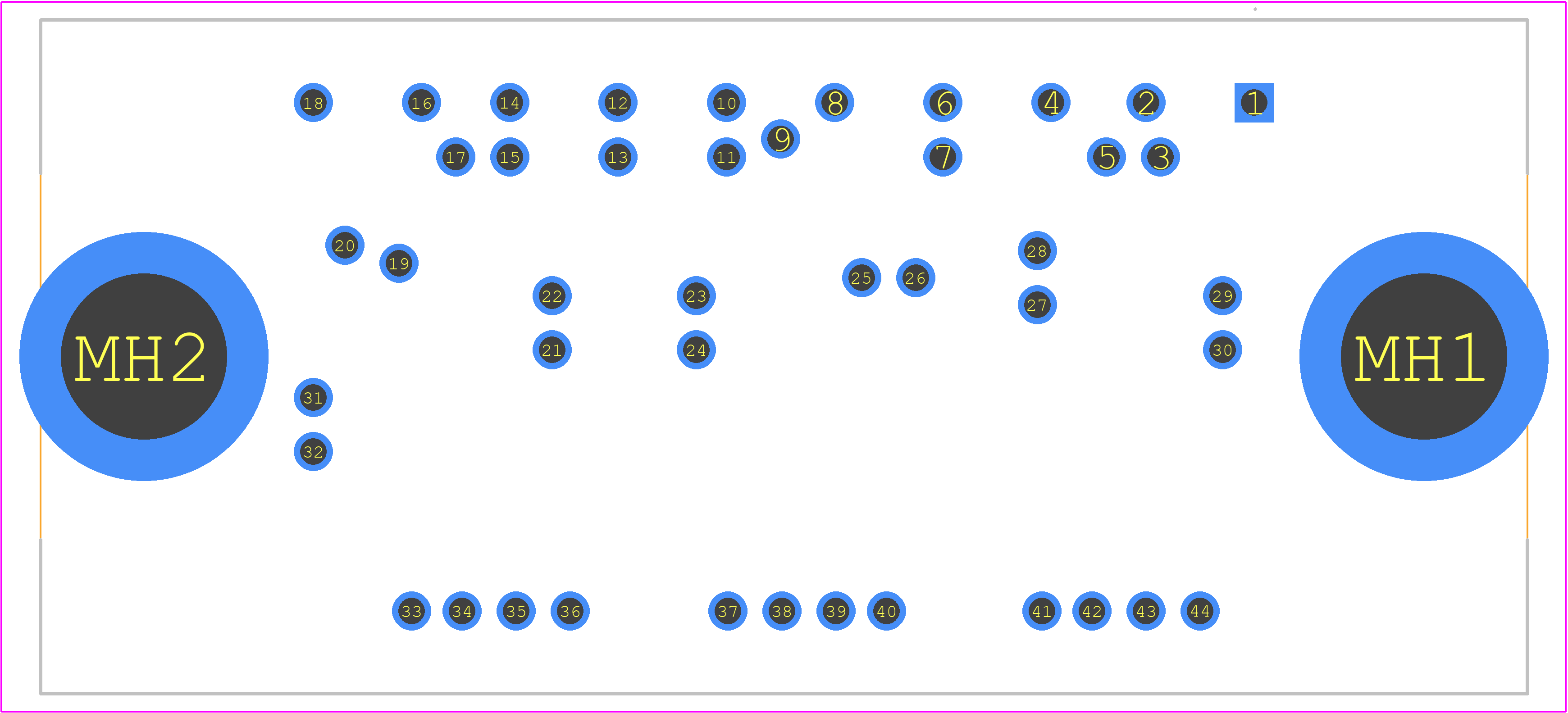

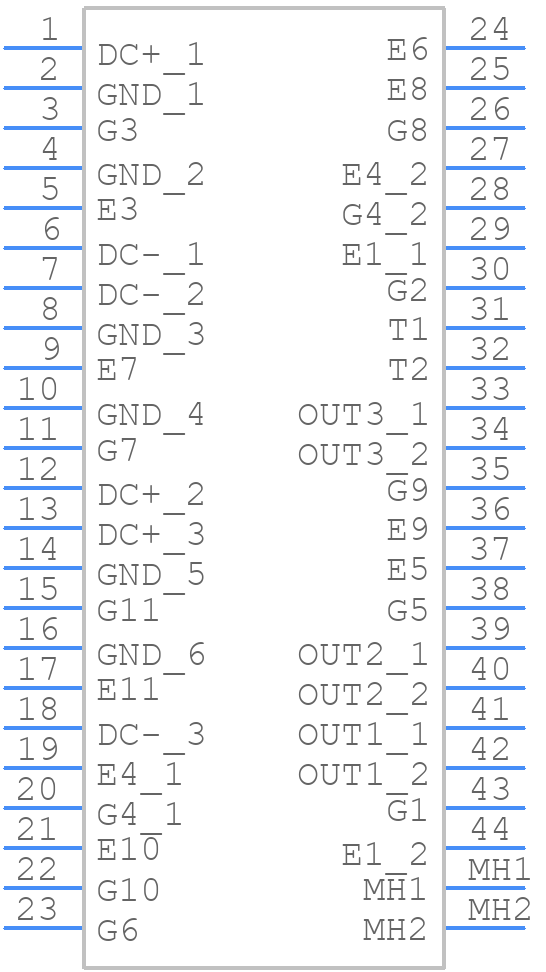

Use the download button to access the NXH40T120L3Q1SG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NXH40,
or try a keyword search, such as IGBTs
