Part Image

NXH500B100H7F5SHG - onsemi

Description: Module with low thermal impedance baseplate; 1000V VCE(sat) fast switching IGBTs and 1200V SiC diode optimized combination for solar boost stage

Download NXH500B100H7F5SHG Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NXH500B100H7F5SHG model

Email notifications will be applied after download.

Send part feedback

Symbol

NXH500B100H7F5SHG - onsemi - PCB symbol

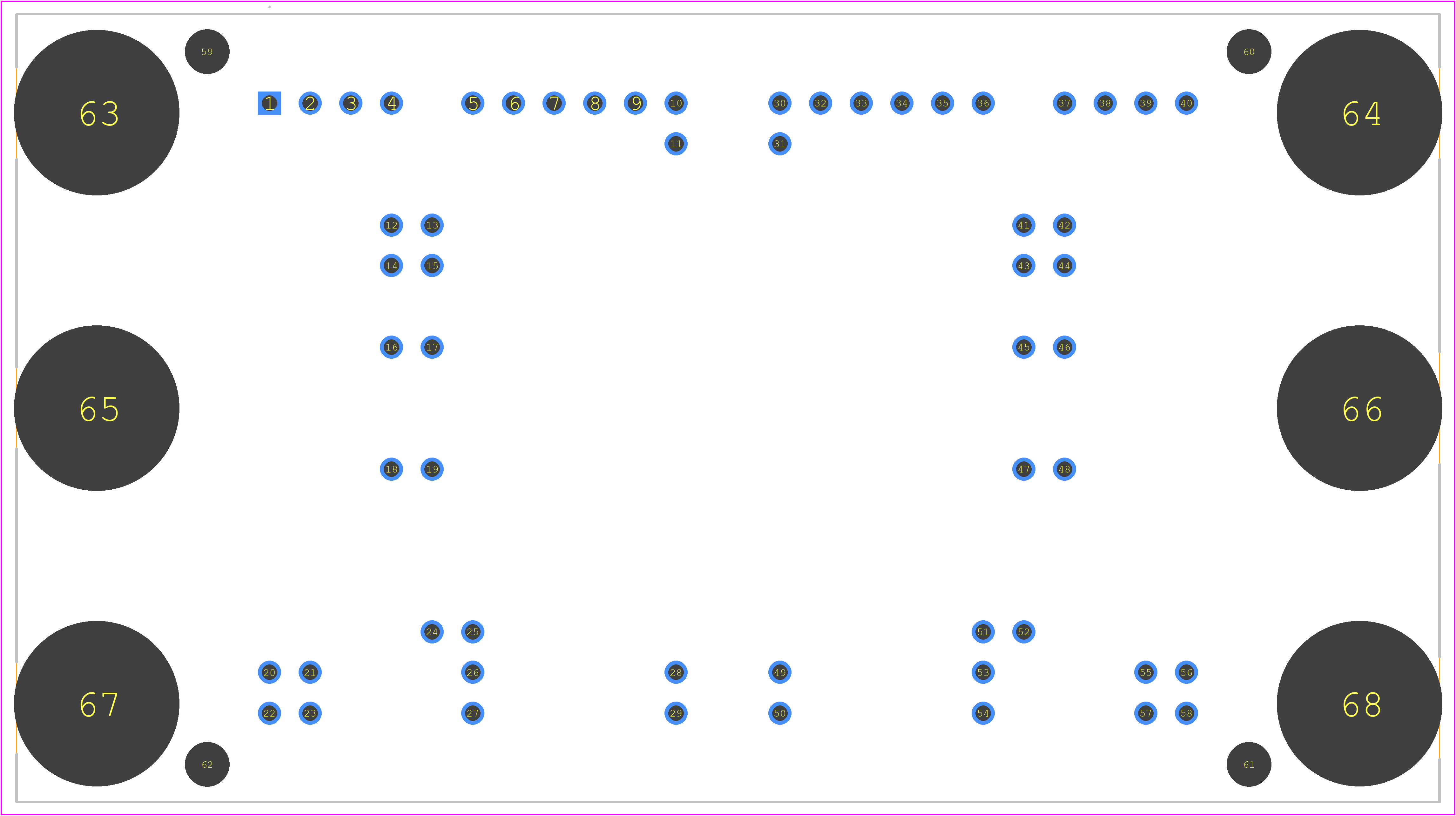

PCB Footprints

NXH500B100H7F5SHG - onsemi PCB footprint - Other - Other - PIM58 112.00x62.00x12.00

3D Models

NXH500B100H7F5SHG - onsemi - 3D model - Other - PIM58 112.00x62.00x12.00

Datasheet Download Datasheet
Stock & Prices Price & Stock for NXH500B100H7F5SHG
Part Number NXH500B100H7F5SHG
Manufacturer onsemi
Pin Count 58
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PIM58 112.00x62.00x12.00
Released Date Sep 22, 2024
Last Modified Date Jan 22, 2025 4:53 PM UTC
Pinout / Pin List Click Here (Member Only)

NXH500B100H7F5SHG Details

Manufacturer Part Number:
NXH500B100H7F5SHG
Brand Name:
onsemi
Pbfree Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
PIM58 112.00x62.00x12.00
Manufacturer Package Code:
180CZ
ECCN Code:
EAR99
Manufacturer:
onsemi

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

NXH500B100H7F5SHG Overview

Use the download button to access the NXH500B100H7F5SHG schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NXH50, or try a keyword search, such as IGBTs
