Part Image

NXH500B100H7Q2F2SHG - onsemi

Description: Module with low thermal impedance baseplate; 1000V VCE(sat) fast switching IGBTs and 1200V SiC diode optimized combination for solar boost stage

Download NXH500B100H7Q2F2SHG Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NXH500B100H7Q2F2SHG model

Email notifications will be applied after download.

Send part feedback

Symbol

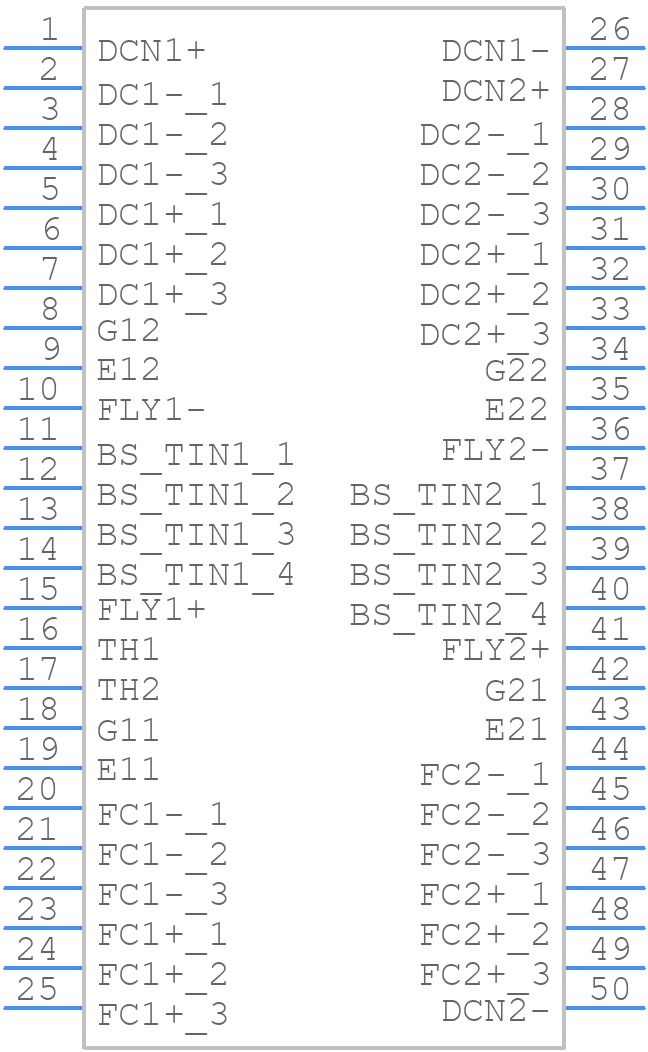

NXH500B100H7Q2F2SHG - onsemi - PCB symbol

PCB Footprints

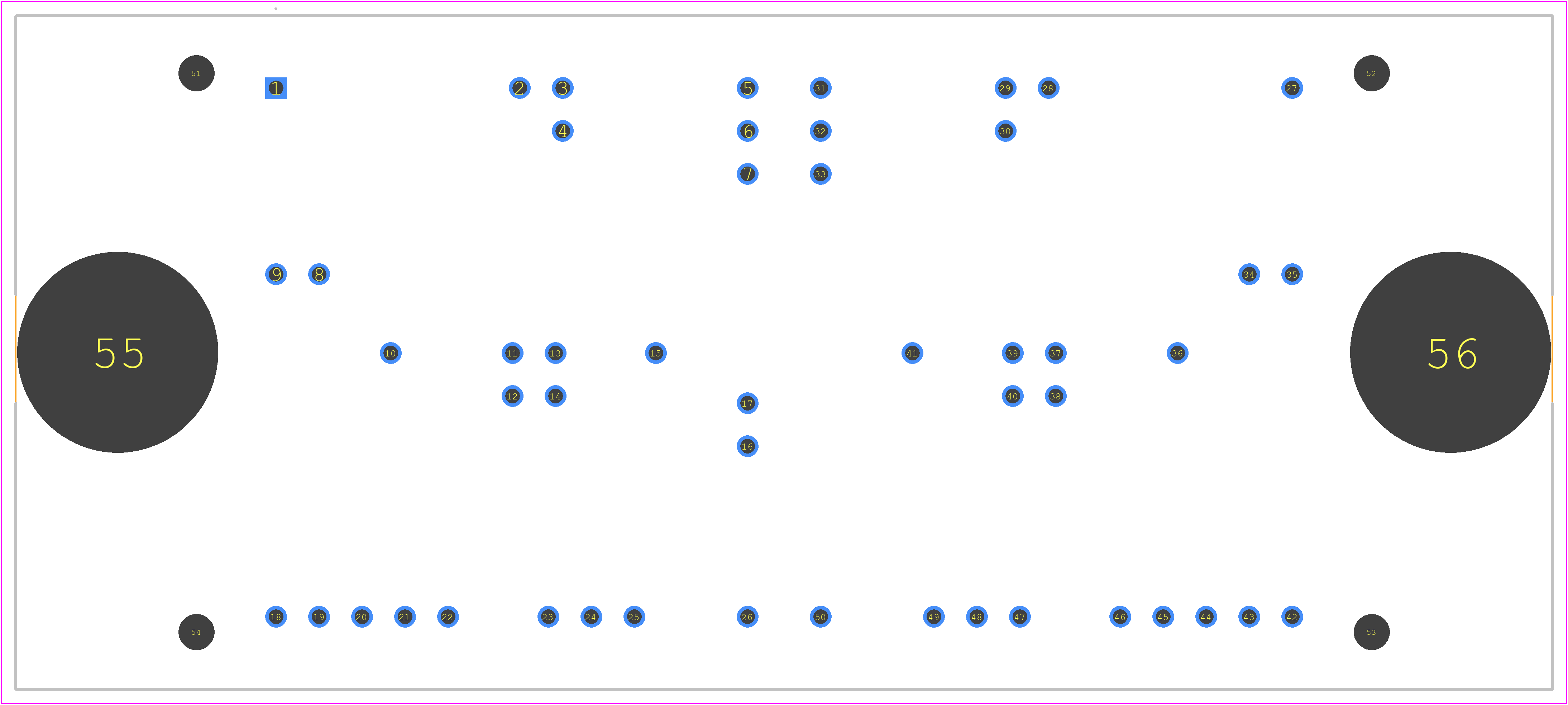

NXH500B100H7Q2F2SHG - onsemi PCB footprint - Other - Other - PIM50 93.00x47.00x12.00 CASE 180CU ISSUE O_2024

3D Models

NXH500B100H7Q2F2SHG - onsemi - 3D model - Other - PIM50 93.00x47.00x12.00 CASE 180CU ISSUE O_2024

Datasheet Download Datasheet
Stock & Prices Price & Stock for NXH500B100H7Q2F2SHG
Part Number NXH500B100H7Q2F2SHG
Manufacturer onsemi
Pin Count 50
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PIM50 93.00x47.00x12.00 CASE 180CU ISSUE O_2024
Released Date Oct 3, 2024
Last Modified Date Jan 22, 2025 4:53 PM UTC
Pinout / Pin List Click Here (Member Only)

NXH500B100H7Q2F2SHG Details

Manufacturer Part Number:
NXH500B100H7Q2F2SHG
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
onsemi

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

NXH500B100H7Q2F2SHG Overview

Use the download button to access the NXH500B100H7Q2F2SHG schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NXH50, or try a keyword search, such as IGBTs
