NXH600B100H4Q2F2PG - onsemi

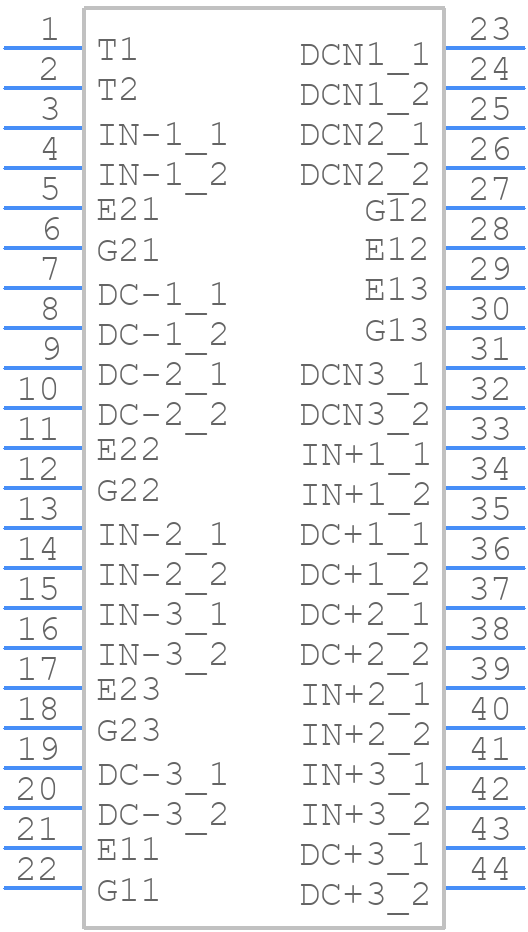

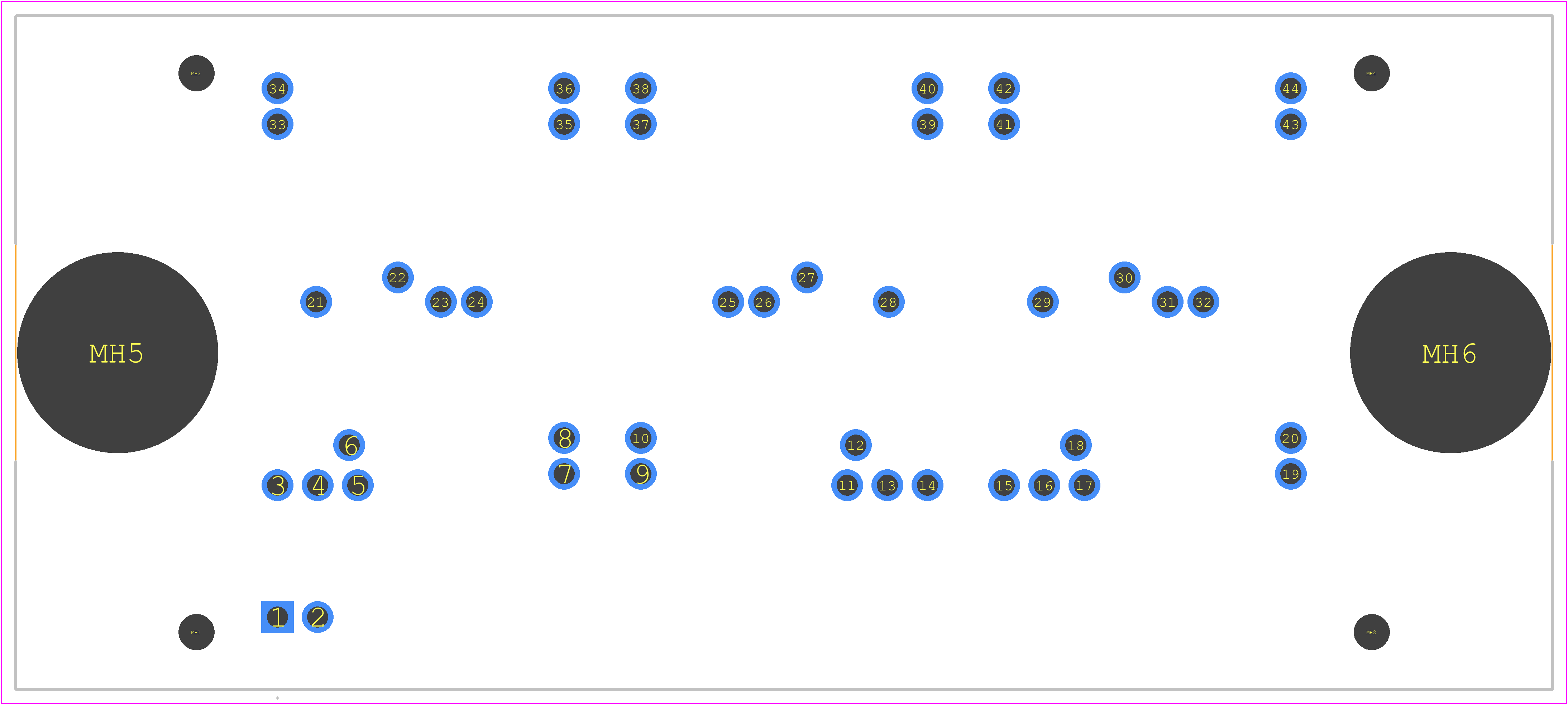

NXH600B100H4Q2F2PG Details

• Manufacturer Part Number:

  NXH600B100H4Q2F2PG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  PIM44, 93x47 (PRESS FIT)

• Manufacturer Package Code:

  180HF

• ECCN Code:

  EAR99

• Factory Lead Time:

  10 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  5.35

• Case Connection:

  ISOLATED

• Collector Current-Max (IC):

  192 A

• Collector-Emitter Voltage-Max:

  1000 V

• Configuration:

  3 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

• Gate-Emitter Thr Voltage-Max:

  6.6 V

• Gate-Emitter Voltage-Max:

  20 V

• JESD-30 Code:

  R-XUFM-X44

• Number of Elements:

  6

• Number of Terminals:

  44

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  511 W

• Surface Mount:

  NO

• Terminal Form:

  UNSPECIFIED

• Terminal Position:

  UPPER

• Transistor Application:

  POWER CONTROL

• Transistor Element Material:

  SILICON

• Turn-off Time-Nom (toff):

  451 ns

• Turn-on Time-Nom (ton):

  126 ns

• VCEsat-Max:

  2.3 V
