NXS0104BQ-Q100X - Nexperia

Description: NXS0104-Q100 - Dual supply translating transceiver; open drain; auto direction sensing@en-us

Download NXS0104BQ-Q100X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

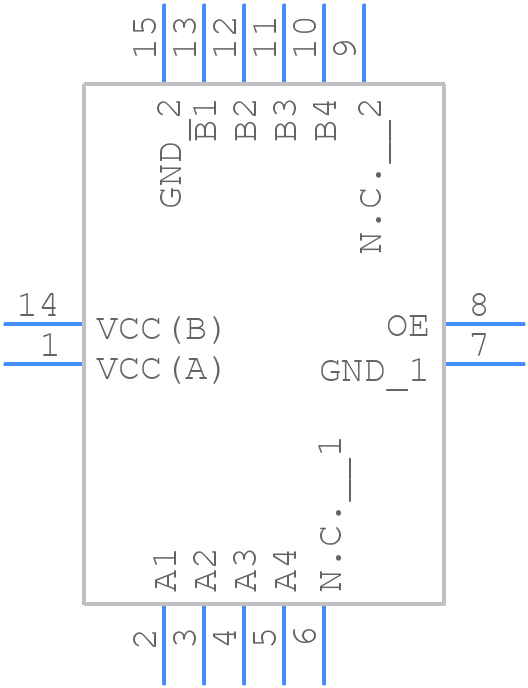

Symbol
NXS0104BQ-Q100X - Nexperia - PCB symbol
click to zoom
PCB Footprints
NXS0104BQ-Q100X - Nexperia PCB footprint - Other - Other - NXS0104BQ-Q100X-1
click to zoom
3D Models
NXS0104BQ-Q100X - Nexperia - 3D model - Other - NXS0104BQ-Q100X-1
click to zoom

NXS0104BQ-Q100X Details

  • Manufacturer Part Number:

    NXS0104BQ-Q100X

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    DHVQFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOT762-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Control Type:

    ENABLE HIGH

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    NXS0104

  • JESD-30 Code:

    R-PQCC-N14

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    BUS TRANSCEIVER

  • Max I(ol):

    0.001 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC14,.09X.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.045 mA

  • Prop. Delay@Nom-Sup:

    8.8 ns

  • Propagation Delay (tpd):

    8.8 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

NXS0104BQ-Q100X Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for NXS0104BQ-Q100X is a QFN16 package with a 3x3 mm body size and 0.5 mm pitch. The datasheet provides a recommended land pattern and solder mask design.
  • To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range (-40°C to 125°C). Also, follow proper thermal design and layout guidelines to minimize thermal resistance and ensure adequate heat dissipation.
  • The NXS0104BQ-Q100X has built-in ESD protection, but it's still recommended to follow standard ESD handling precautions during assembly and handling. The device can withstand ESD pulses up to 2 kV according to the Human Body Model (HBM) and 150 V according to the Machine Model (MM).
  • Yes, the NXS0104BQ-Q100X is AEC-Q100 qualified, making it suitable for use in automotive applications. However, ensure that the device is used within its specified operating conditions and that the system design meets the required automotive standards.
  • To troubleshoot issues with NXS0104BQ-Q100X, follow a systematic approach: 1) Consult the datasheet and application notes, 2) Verify the device is used within its specified operating conditions, 3) Check for proper PCB design and layout, 4) Use oscilloscopes or logic analyzers to debug the signal, and 5) Contact Nexperia's technical support if the issue persists.
