NXS0104GU12-Q100X - Nexperia

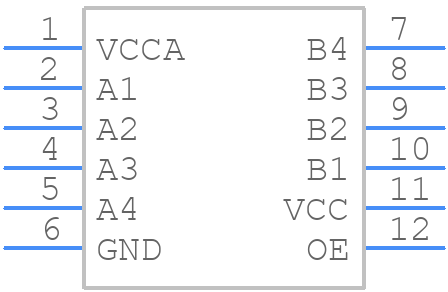

NXS0104GU12-Q100X Details

• Manufacturer Part Number:

  NXS0104GU12-Q100X

• Part Life Cycle Code:

  Active

• Package Description:

  XQFN-12

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Nexperia

• YTEOL:

  7

• Control Type:

  ENABLE HIGH

• Count Direction:

  BIDIRECTIONAL

• Family:

  NXS0104

• JESD-30 Code:

  R-PQCC-N12

• Length:

  2 mm

• Load Capacitance (CL):

  15 pF

• Logic IC Type:

  BUS TRANSCEIVER

• Number of Bits:

  4

• Number of Functions:

  1

• Number of Ports:

  2

• Number of Terminals:

  12

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-DRAIN/3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  XQCCN

• Package Equivalence Code:

  LCC12,.07X.08,16

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, EXTREMELY THIN PROFILE

• Power Supply Current-Max (ICC):

  0.045 mA

• Prop. Delay@Nom-Sup:

  8.5 ns

• Propagation Delay (tpd):

  8.8 ns

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  0.5 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  1.65 V

• Supply Voltage-Nom (Vsup):

  1.8 V

• Surface Mount:

  YES

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Width:

  1.7 mm
