NXV08V110DB1 - onsemi

Description: Three−Phase Inverter Bridge for Variable Speed Motor Drive; RC Snubber for Low EMI; Current Sensing and Temperature Sensing; Electrically Isolated DBC Substrate for Low Thermal Resistance; Compact Design for Low Total Module Resistance; Module Serialization for Full Traceability; AEC Qualified − AQG324; PPAP Capable; This Device is Pb−free, RoHS and UL94 V-0 Compliant

Download NXV08V110DB1 Model
Schematic

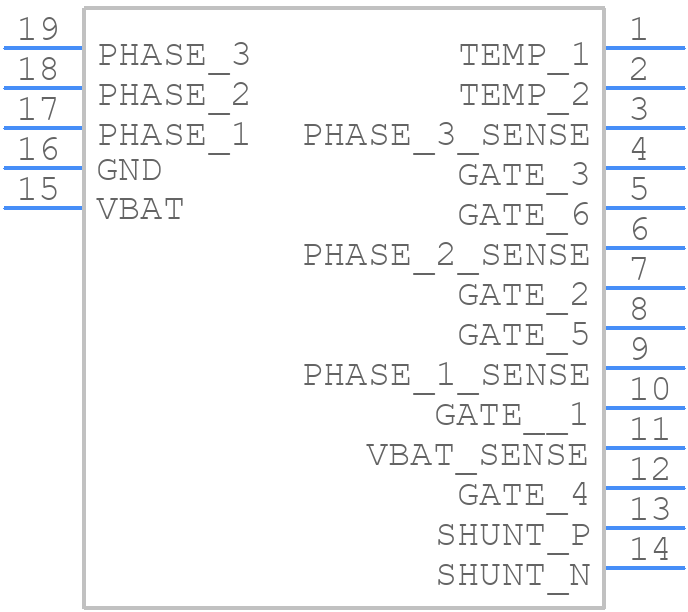

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

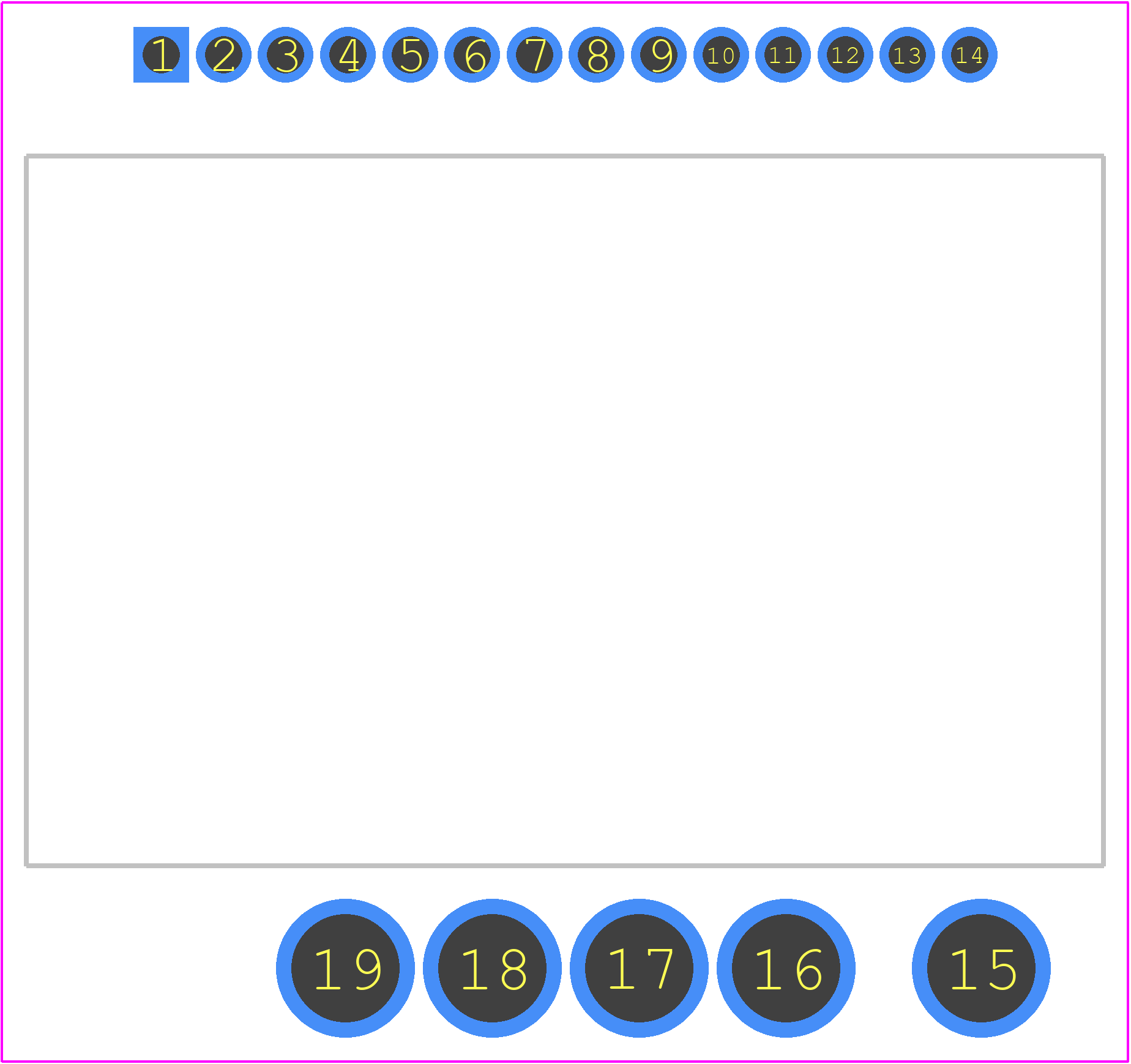

PCB Footprints
NXV08V110DB1 - onsemi PCB footprint - Other - Other - NXV08V110DB1
click to zoom
3D Models
NXV08V110DB1 - onsemi  - 3D model - Other - NXV08V110DB1
click to zoom

NXV08V110DB1 Details

  • Manufacturer Part Number:

    NXV08V110DB1

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    19LD, APM, PDD STD (APM19-CBC)

  • Manufacturer Package Code:

    MODCD

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XDFM-T19

  • Length:

    44 mm

  • Number of Functions:

    1

  • Number of Terminals:

    19

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Screening Level:

    AEC-Q100

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    37.34 mm

NXV08V110DB1 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for good airflow.
  • To ensure reliable operation in high-temperature environments, follow the recommended operating temperature range, use a heat sink or thermal pad, and consider using a thermal interface material to improve heat transfer. Additionally, ensure good airflow and avoid overheating the device.
  • The recommended soldering conditions for the NXV08V110DB1 are a peak temperature of 260°C, a soldering time of 10-30 seconds, and a soldering method that follows the IPC J-STD-020 standard.
  • To handle ESD protection during handling and assembly, use an ESD wrist strap or mat, handle the device by the body or pins, avoid touching the pins or die, and store the device in an ESD-protective package or bag.
  • Using a different voltage rating than the recommended 110V may affect the device's performance, reliability, and lifespan. It may also void the warranty or compromise the device's safety features. Always follow the recommended voltage rating to ensure optimal performance and safety.
