Description:Automotive Qualified per AEC Q101 and AQG324 Guidelines; SIP or DIP H−Bridge Power Module for On−board Charger (OBC) in EV−PHEV; Compact Design for Low Total Module Resistance; Module Serialization for Full Traceability; Lead Free, RoHS and UL94V−0 Compliant
A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust cooling system. Additionally, consider derating the device's power dissipation and voltage ratings according to the temperature.
The NXV65HR51DZ2 has built-in ESD protection, but it's still crucial to follow proper handling and storage precautions to prevent damage. Use an ESD wrist strap, mat, or workstation, and avoid touching the device's pins or exposed die. Store the device in an anti-static bag or container.
Yes, the NXV65HR51DZ2 is suitable for high-reliability and automotive applications. However, it's essential to follow the recommended operating conditions, and ensure that the device is properly qualified and validated for the specific application. Consult with onsemi's application notes and reliability reports for more information.
The recommended soldering conditions for the NXV65HR51DZ2 include a peak temperature of 260°C, a soldering time of 10 seconds, and a soldering method that follows the IPC J-STD-020 standard. For rework, use a low-temperature soldering iron and follow onsemi's recommended rework procedures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NXV65HR51DZ2 Overview

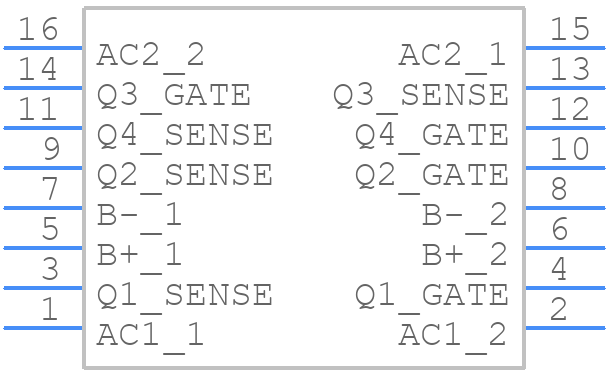

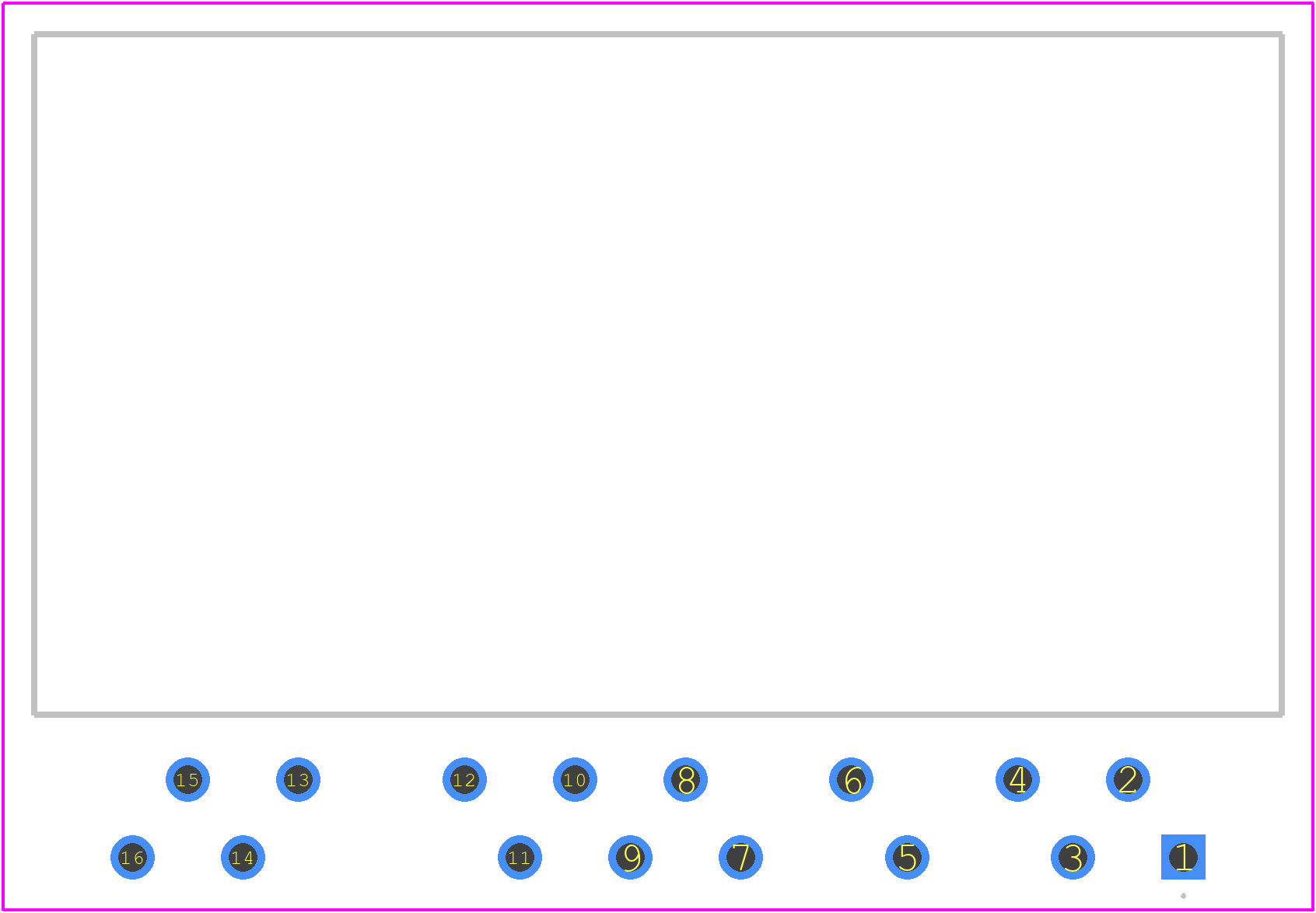

Use the download button to access the NXV65HR51DZ2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NXV65,
or try a keyword search, such as Power Field-Effect Transistors
