NXV65HR82DS2 - onsemi

Description: MOSFET APM16-CAB SF3 650V 82MOHM

Download NXV65HR82DS2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

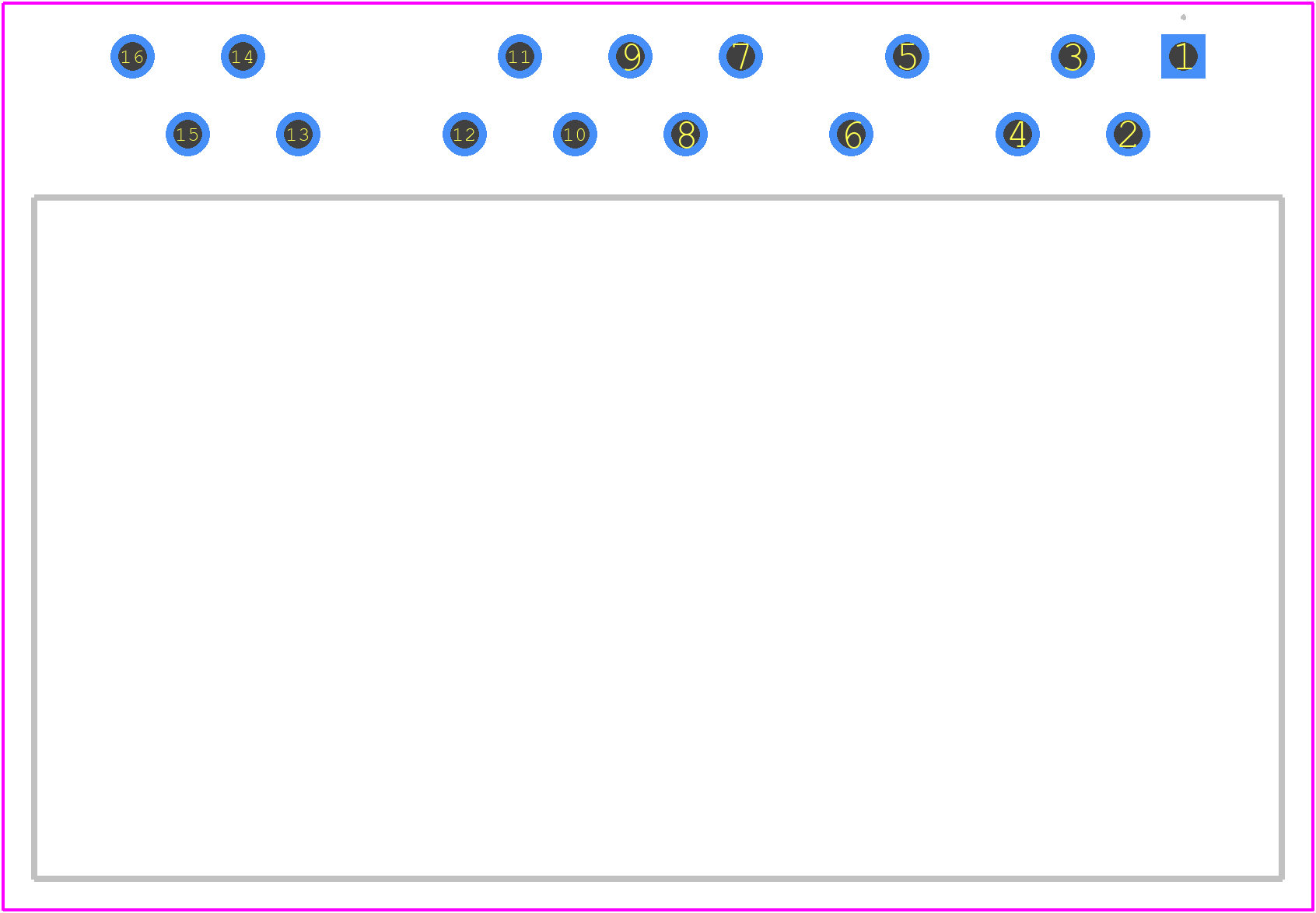

NXV65HR82DS2 - onsemi PCB footprint - Other - Other - PIM16 40.10x21.90x4.50 CASE MODGJ ISSUE D_2024-1
click to zoom
3D Models
NXV65HR82DS2 - onsemi  - 3D model - Other - PIM16 40.10x21.90x4.50 CASE MODGJ ISSUE D_2024-1
click to zoom

NXV65HR82DS2 Details

  • Manufacturer Part Number:

    NXV65HR82DS2

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PIM16 40.10x21.90x4.50

  • Manufacturer Package Code:

    MODGJ

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • JESD-609 Code:

    e3

  • Terminal Finish:

    Matte Tin (Sn) - annealed

NXV65HR82DS2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the NXV65HR82DS2 should include a solid ground plane, wide power traces, and a thermal relief pattern under the device. A minimum of 2oz copper thickness is recommended. Refer to the onsemi application note AND9093/D for more details.
  • To ensure reliable operation at high temperatures, follow the recommended operating conditions, use a suitable thermal interface material, and ensure good airflow around the device. Also, consider using a heat sink or a thermal management system to keep the junction temperature below 150°C.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage below 5V to ensure proper operation and to prevent damage to the device.
  • Yes, the NXV65HR82DS2 is suitable for high-frequency switching applications up to 100 kHz. However, it's essential to follow the recommended layout and decoupling guidelines to minimize parasitic inductance and ensure reliable operation.
  • The NXV65HR82DS2 requires a specific power sequencing to prevent damage. The VCC pin should be powered up before the VIN pin, and the VCC pin should be powered down after the VIN pin. A power sequencing circuit or a dedicated power management IC can be used to ensure proper sequencing.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NXV65HR82DS2 Overview

Use the download button to access the NXV65HR82DS2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NXV65, or try a keyword search, such as Power Field-Effect Transistors
